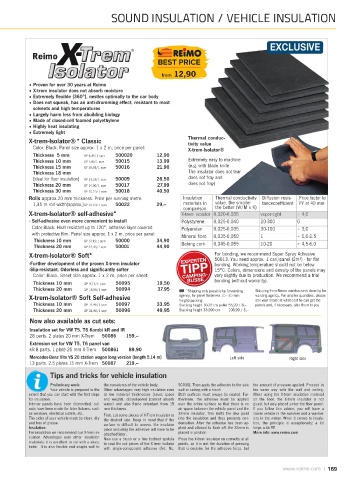

Page 169 - REIMO - VAN CONVERSION catalogue
P. 169

SOUND INSULATION / VEHICLE INSULATION





                                                                                            EXCLUSIVE
                                             ®
            Reimo
                                                      BEST PRICE
                                                       from 12,90

           • Proven for over 30 years at Reimo
           • X-trem insulator does not absorb moisture
           • Extremely flexible (360°), nestles optimally to the car body
           • Does not squeak, has an anti-drumming effect, resistant to most
            solvents and high temperatures
           • Largely harm less from abuilding biology
           • Made of closed-cell foamed polyethylene
           • Highly heat insulating
           • Extremely light
           X-trem-Isolator®* Classic                            Thermal conduc-
                                                                tivity value
            Color: Black. Panel size approx. 1 x 2 m, price per panel:  X-trem-Isolator®
            Thickness 5 mm   GP 6,45/1 sqm  500020    12,90
            Thickness 10 mm  GP 7,00/1 sqm  50015     13,99      Extremely easy to machine
            Thickness 15 mm  GP 10,95/1 sqm  50016    21,90      (e.g. with blade knife
            Thickness 18 mm                                      The insulator does not tear
            (ideal for floor insulation)  GP 13,25/1 sqm  50009  26,50  does not fray and
            Thickness 20 mm  GP 14,00/1 sqm  50017    27,99      does not fray)
            Thickness 30 mm  GP 20,25/1 sqm  50018    40,50
           Rolls approx.20 mm thickness. Price per running metre.  Insulation  Thermal conductivity  Diffusion resis-  Price factor to
            1,45 m roll width(approx.)GP 20,00/1 sqm  50022  29,--  materials in  value, the smaller  tancecoefficient  PY at 40 mm
                                                                          the better (W/M x K)
                                                               comparison
           X-trem-Isolator® self-adhesive*                    X-trem isolator 0,020-0,035  vapor-tight  + 4,0
           - Self-adhesive even more convenient to install    Polystyrene  0,025-0,040   20-300      0
            Color Black. Heat resistant up to 120°, adhesive layer covered  Polyuretan  0,025-0,035  30-100  + 3,0
            with protective film. Panel size approx. 1 x 2 m, price per panel:  Mineral fibre  0,035-0,050  1  + 0,0-2,5
            Thickness 10 mm  GP 17,45/1 sqm  50000    34,90   Baking cork  0,045-0,055   10-20       + 4,5-6,0
            Thickness 20 mm  GP 22,45/1 sqm  50001    44,90
           X-trem-Isolator® Soft*                                        For bonding, we recommend Super Spray Adhesive
                                                                         50013. You need approx. 1 can/panel (2m²) - for flat
           -Further development of the proven X-trem insulator           bonding. Working temperature should not be below
           -Slip-resistant, Odorless and significantly softer            15°C. Colors, dimensions and density of the panels may
            Color: Black. Sheet size approx. 1 x 2 m, price per sheet:   vary slightly due to production. We recommend a trial
            Thickness 10 mm  GP 9,75/1 sqm  50095     19,50              bonding (without warranty).
            Thickness 20 mm  GP 18,98/1 sqm  50094    37,95     *Shipping only possible by forwarding  Shipping from Reimo warehouse is done by for-
           X-trem-Isolator® Soft Self-adhesive               agency, for panel thickness 10 - 30 mm  warding agency. For smaller quantities, please
                                                                                       ask your dealer at what cost he can get the
                                                             freight/packing
            Thickness 10 mm  GP 16.98/1 sqm  50097    33,95  Stacking height 10-32 cm pallet 55,99 / 8,--  panels and, if necessary, ship them to you
            Thickness 20 mm  GP 24,98/1 sqm  50096    49,95  Stacking height 33-200 cm  108,99 / 8,--
           Now also available as cut sets:
           Insulation set for VW T5, T6 Kombi kR and lR
           28 parts. 2 plates 20 mm X-Trem  50086  159,--
           Extension set for VW T5, T6 panel van
           kR 8 parts. 1 plate 20 mm X-Trem  500861  89,90
           Mercedes-Benz Vito VS 20 station wagon long version (length 5,14 m)  Left side          Right side
           13 parts. 2.5 plates 15 mm X-Trem 50087  219,--
                  Tips and tricks for vehicle insulation
                  Preliminary work:  the curvatures of the vehicle body.  50036). Then apply the adhesive to the side the amount of pressure applied. Proceed in
                  Your vehicle is prepared to the Other advantages: very high insulation even wall or ceiling with a brush  the same way with the wall and ceiling.
           extent that you can start with the first steps at low material thicknesses (saves space Both surfaces must always be coated. Fur- When using the X-trem insulation material
           for insulation.          and weight), closed-pored (cannot absorb thermore, the adhesive must be applied on the floor, the X-trem insulator is not
           Interior panels have been dismantled, cut- water) and also flame retardant from 15 over the entire surface so that there is no glued, but only placed under the floor panel.
           outs have been made for later fixtures, such mm thickness.  air space between the vehicle panel and the If you follow this advice, you will have a
           as windows, electrical outlets, etc.  First, cut some pieces of X-Trem insulator to  X-trem insulator. This shifts the dew point cooler vehicle in the summer and a warmer
           The sides of your vehicle must be clean, dry  the desired size. Keep in mind that if the  into the insulation and thus prevents con- one in the winter. When it comes to insula-
           and free of grease.      surface is difficult to access, the insulator  densation. After the adhesive has been ap- tion, the principle is exceptionally: a lot
           Insulation:              piece including the adhesive will have to be  plied and allowed to flash off, the X-trem is helps a lot !!!!
           For insulation we recommend our X-trem in-  attached later.  placed in position  More info: www.reimo.com
           sulator. Advantages over other insulation  Now use a brush or a fine toothed spatula Press the X-trem insulator on correctly at all
           materials: it is excellent to cut with a sharp  to coat the cut pieces of the X-trem isolator points, as it is not the duration of pressing
           knife. It is also flexible and adapts well to  with single-component adhesive (Art. No. that is decisive for the adhesive force, but



                                                                                                www.reimo.com  169
