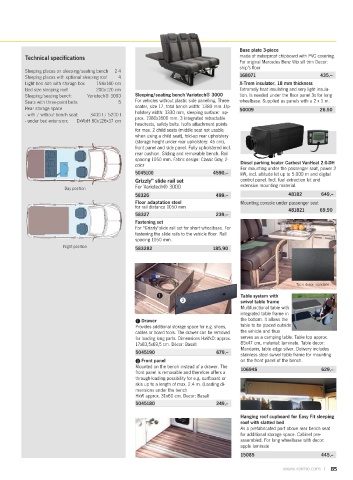

Page 85 - REIMO - VAN CONVERSION catalogue

Base plate 3-piece
Technical specifications made of waterproof chipboard with PVC covering.
For original Mercedes Benz Vito sill trim Decor:
ship's floor
Sleeping places on sleeping/seating bench 2-4
Sleeping places with optional sleeping roof 4 168071 435,--
Light bed size with storage box 198x140 cm X-Trem insulator, 18 mm thickness
Bed size sleeping roof 200x120 cm Extremely heat insulating and very light insula-
Sleeping/seating bench: Variotech® 3000 Sleeping/seating bench Variotech® 3000 tion. Is needed under the floor panel 3x for long
Seats with three-point belts 5 For vehicles without plastic side panelling. Three- wheelbase. Supplied as panels with a 2 x 1 m.
Rear storage space seater, size 17, total bench width: 1380 mm .Up- 50009 26,50
- with / without bench seat: 3400 l / 5200 l holstery width: 1330 mm, sleeping surface: ap-
- under bed extension: DxWxH 60x126x37 cm prox. 1980x1600 mm. 3 integrated retractable
headrests, safety belts. Isofix attachment points
for max. 2 child seats (middle seat not usable
when using a child seat), fold-up rear upholstery
(storage height under rear upholstery: 46 cm),
front panel and side panel. Fully upholstered incl.
rear cushion. Sliding and removable bench. Rail
spacing 1050 mm. Fabric design: Classic Gray, 2-
color Diesel parking heater Carbest VanHeat 2.0-DH
For mounting under the passenger seat, power 2
5045100 4590,-- kW, incl. altitude kit up to 5.000 m and digital
Grizzly" slide rail set control panel. Incl. fuel extraction kit and
Day position For Variotech® 3000 extensive mounting material.
58326 499,-- 48182 649,--
Floor adaptation steel Mounting console under passenger seat
for rail distance 1050 mm 481821 69,90
58327 239,--
Fastening set
For "Grizzly"slide rail set for short wheelbase. For
fastening the slide rails to the vehicle floor. Rail
spacing 1050 mm.
Night position 583282 185,90

Table decor mandarin

Table system with
swivel table frame
Multifunctional table with
integrated table frame in
Drawer the bottom. It allows the
Provides additional storage space for e.g. shoes, table to be placed outside
cables or board tools. The drawer can be removed the vehicle and thus
for loading long parts. Dimensions HxWxD: approx. serves as a camping table. Table top approx.
17x83,5x69,5 cm. Décor: Basalt 85x47 cm, material: laminate. Table decor:
Mandarin, table edge silver. Delivery includes
5045190 679,-- stainless steel swivel table frame for mounting
Front panel on the front panel of the bench.
Mounted on the bench instead of a drawer. The 10694S 629,--
front panel is removable and therefore offers a
through-loading possibility for e.g. surfboard or
skis up to a length of max. 2.4 m. (Loading di-
mensions under the bench
HxW approx. 31x60 cm. Decor: Basalt
5045180 249,--

Hanging roof cupboard for Easy Fit sleeping
roof with slatted bed
As a prefabricated part above rear bench seat
for additional storage space. Cabinet pre-
assembled. For long wheelbase with decor:
apple laminate
15085 445,--

www.reimo.com 85
