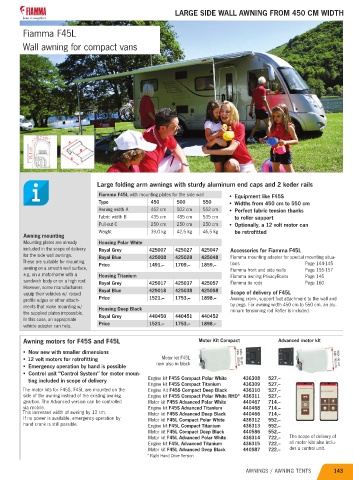

Page 153 - REIMO 2025

LARGE SIDE WALL AWNING FROM 450 CM WIDTH

Fiamma F45L

Wall awning for compact vans

9,7 cm

16,1 cm

Large folding arm awnings with sturdy aluminum end caps and 2 keder rails
Fiamma F45L with mounting plates for the side wall • Equipment like F45S
Type 450 500 550 • Widths from 450 cm to 550 cm
Awning width A 452 cm 502 cm 552 cm • Perfect fabric tension thanks
Fabric width B 435 cm 485 cm 535 cm to roller support
Pull-out C 250 cm 250 cm 250 cm • Optionally, a 12 volt motor can
Weight 39,0 kg 42,5 kg 46,5 kg be retrofitted
Awning mounting
Mounting plates are already Housing Polar White
included in the scope of delivery Royal Grey 425007 425027 425047 Accessories for Fiamma F45L
for the side wall awnings. Royal Blue 425008 425028 425048 Fiamma mounting adapter for special mounting situa-
These are suitable for mounting Price 1491,-- 1709,-- 1859,-- tions Page 144-145
awning on a smooth wall surface, Fiamma front and side walls Page 155-157
e.g. on a motorhome with a Housing Titanium Fiamma awning PrivacyRoom Page 146
sandwich body or on a high roof. Royal Grey 425017 425037 425057 Fiamma tie rods Page 160
However, some manufacturers Royal Blue 425018 425038 425058
equip their vehicles w/ raised Scope of delivery of F45L
profile edges or other attach- Price 1521,-- 1753,-- 1898,-- Awning crank, support foot attachment to the wall and
ments that make mounting w/ Housing Deep Black by pegs. For awning width 450 cm to 550 cm, an alu-
the supplied plates impossible. Royal Grey 440450 440451 440452 minum tensioning rod Rafter is included.
In this case, an appropriate
vehicle adapter can help. Price 1521,-- 1753,-- 1898,--

Awning motors for F45S and F45L Motor Kit Compact Advanced motor kit
• Now new with smaller dimensions
• 12 volt motors for retrofitting Motor kit F45L
• Emergency operation by hand is possible now also in black
• Control unit "Control System" for motor moun-
ting included in scope of delivery Engine kit F45S Compact Polar White 436308 527,--
Engine kit F45S Compact Titanium 436309 527,--
The motor kits for F45S, F45L are mounted on the Engine Kit F45S Compact Deep Black 436310 527,--
side of the awning instead of the existing awning Engine kit F45S Compact Polar White RHD* 436311 527,--
gearbox. The Advanced version can be controlled Motor kit F45S Advanced Polar White 440467 714,--
via mobile. Engine kit F45S Advanced Titanium 440468 714,--
This increases width of awning by 13 cm. Motor kit F45S Advanced Deep Black 440466 714,--
If no power is available, emergency operation by Motor kit F45L Compact Polar White 436312 552,--
hand crank is still possible. Engine kit F45L Compact Titanium 436313 552,--
Motor kit F45L Compact Deep Black 440586 552,--
Motor kit F45L Advanced Polar White 436314 722,-- The scope of delivery of
Engine kit F45L Advanced Titanium 436315 722,-- all motor kits also inclu-
Motor kit F45L Advanced Deep Black 440587 722,-- des a control unit.
* Right Hand Drive Version

AWNINGS / AWNING TENTS 143
