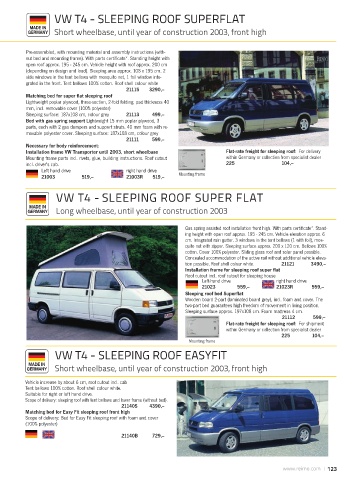

Page 123 - REIMO - VAN CONVERSION catalogue

VW T4 - SLEEPING ROOF SUPERFLAT

MADE IN
GERMANY Short wheelbase, until year of construction 2003, front high

Pre-assembled, with mounting material and assembly instructions (with-
out bed and mounting frame). With parts certificate*. Standing height with
open roof approx. 195 - 245 cm. Vehicle height with roof approx. 200 cm
(depending on design and load). Sleeping area approx. 108 x 195 cm. 2
side windows in the tent bellows with mosquito net, 1 foil window inte-
grated in the front. Tent bellows 100% cotton. Roof shell colour white
21115 3290,--
Matching bed for super flat sleeping roof
Lightweight poplar plywood, three-section, 2-fold folding, pad thickness 40
mm, incl. removable cover (100% polyester)
Sleeping surface: 187x108 cm, colour grey 21113 499,--
Bed with gas spring support Lightweight 15 mm poplar plywood, 3
parts, each with 2 gas dampers and support struts. 40 mm foam with re-
movable polyester cover. Sleeping surface: 187x108 cm, colour grey
21111 599,--
Necessary for body reinforcement:
Installation frame VW Transporter until 2003, short wheelbase Flat-rate freight for sleeping roof: For delivery
Mounting frame parts incl. rivets, glue, building instructions. Roof cutout within Germany or collection from specialist dealer
incl. driver's cab. 225 104,--
Left hand drive right hand drive
21003 519,-- 21003R 519,-- Mounting frame

VW T4 - SLEEPING ROOF SUPER FLAT

MADE IN
GERMANY Long wheelbase, until year of construction 2003

Gas spring assisted roof installation front high. With parts certificate*. Stand-
ing height with open roof approx. 195 - 245 cm. Vehicle elevation approx. 6
cm. Integrated rain gutter. 3 windows in the tent bellows (1 with foil), mos-
quito net with zipper. Sleeping surface approx. 200 x 120 cm. Bellows 100%
cotton. Cover 100% polyester. Sliding glass roof and solar panel possible.
Concealed accommodation of the active rail without additional vehicle eleva-
tion possible. Roof shell colour white. 21121 3490,--
Installation frame for sleeping roof super flat
Roof cutout incl. roof cutout for sleeping house
Left-hand drive right hand drive
21023 559,-- 21023R 559,--
Sleeping roof bed Superflat
Wooden board 2-part (laminated board grey), incl. foam and cover. The
two-part bed guarantees high freedom of movement in living position.
Sleeping surface approx. 197x108 cm. Foam mattress 4 cm.
21112 599,--
Flat-rate freight for sleeping roof: For shipment
within Germany or collection from specialist dealer
225 104,--
Mounting frame
VW T4 - SLEEPING ROOF EASYFIT

MADE IN
GERMANY Short wheelbase, until year of construction 2003, front high

Vehicle increase by about 6 cm, roof cutout incl. cab
Tent bellows 100% cotton. Roof shell colour white.
Suitable for right or left hand drive.
Scope of delivery: sleeping roof with tent bellows and lower frame (without bed).
21140S 4390,--
Matching bed for Easy Fit sleeping roof front high
Scope of delivery: Bed for Easy Fit sleeping roof with foam and cover
(100% polyester)

21140B 729,--

www.reimo.com 123
