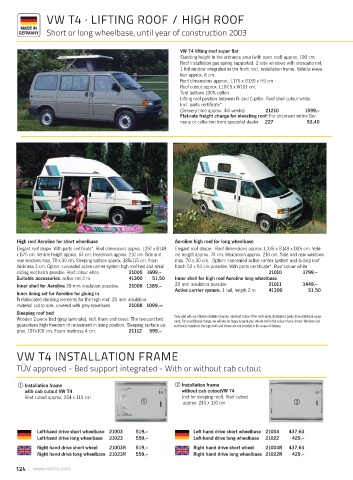

VW T4 · LIFTING ROOF / HIGH ROOF

MADE IN
GERMANY Short or long wheelbase, until year of construction 2003

VW T4 lifting roof super flat
Standing height in the entrance area (with open roof) approx. 190 cm
Roof installation gas spring supported. 2 side windows with mosquito net,
1 foil window integrated in the front. Incl. installation frame. Vehicle eleva-
tion approx. 6 cm.
Roof dimensions approx.: L175 x B130 x H9 cm
Roof cutout approx. L107,5 x W101 cm.
Tent bellows 100% cotton
Lifting roof position between B- and C-pillar. Roof shell colour white.
Incl. parts certificate*.
(Delivery time approx. 4-6 weeks) 21210 1599,--
Flat-rate freight charge for elevating roof: For shipment within Ger-
many or collection from specialist dealer 227 53,40

High roof Aeroline for short wheelbase Aeroline high roof for long wheelbase
Elegant roof shape. With parts certificate*. Roof dimensions approx. L297 x B149 Elegant roof shape. Roof dimensions approx. L335 x B149 x D85 cm. Vehi-
x D75 cm. Vehicle height approx. 64 cm. Headroom approx. 210 cm. Side and cle height approx. 74 cm. Headroom approx. 210 cm. Side and rear windows
rear windows max. 70 x 30 cm. Sleeping surface approx. 185x115 cm, foam max. 70 x 30 cm. Option: concealed active carrier system and sliding roof
thickness 3 cm. Option: concealed active carrier system high roof bed and small hatch 52 x 54 cm possible. With parts certificate*. Roof colour white
sliding roof hatch possible. Roof colour white 21005 1699,-- 21010 1799,--
Suitable accessories: active rail 2 m 41300 51,50 Inner shell for high roof Aeroline long wheelbase
Inner shell for Aeroline 20 mm insulation possible. 21006 1389,-- 20 mm insulation possible 21011 1449,--
Inner lining set for Aeroline for gluing in Active carrier system, 1 rail, length 2 m 41300 51,50
Prefabricated cladding elements for the high roof. 20 mm insulation
material cut to size, covered with grey isovelours 21008 1099,---
Sleeping roof bed
Wooden 2-piece bed (grey laminate), incl. foam and cover. The two-part bed *only valid with our offered installation frames. Standard colour of the roofs white, illustrations partly show additional equip-
ment. For an additional charge, we will also be happy to paint your vehicle roof in the colour of your choice. Windows and
guarantees high freedom of movement in living position. Sleeping surface ap- roof hoods installed in the high roofs and shown are not included in the scope of delivery.
prox. 197x108 cm. Foam mattress 4 cm. 21112 599,--

VW T4 INSTALLATION FRAME

TÜV approved - Bed support integrated - With or without cab cutout

Installation frame Installation frame
with cab cutout VW T4 without cab cutoutVW T4
Roof cutout approx. 284 x 110 cm (not for sleeping roof). Roof cutout
approx. 243 x 110 cm

Left-hand drive short wheelbase 21003 519,-- Left hand drive short wheelbase 21004 437,63
Left-hand drive long wheelbase 21023 559,-- Left-hand drive long wheelbase 21022 429,--
Right hand drive short wheel 21003R 519,-- Right hand drive short wheel 21004R 437,63
Right hand drive long wheelbase 21023R 559,-- Right hand drive long wheelbase 21022R 429,--
