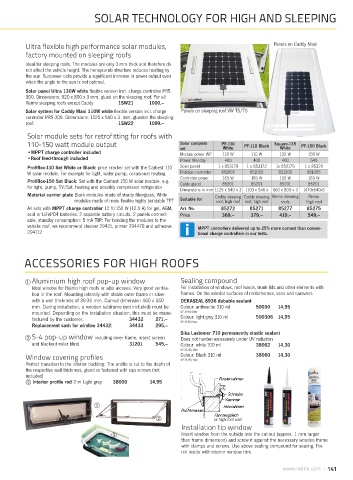

Page 141 - REIMO - VAN CONVERSION catalogue

SOLAR TECHNOLOGY FOR HIGH AND SLEEPING

Ultra flexible high performance solar modules, Panels on Caddy Maxi
factory mounted on sleeping roofs

Ideal for sleeping roofs. The modules are only 3 mm thick and therefore do
not affect the vehicle height. The honeycomb structure reduces heating by
the sun. Sunpower cells provide a significant increase in power output even
when the angle to the sun is not optimal.
Solar panel Ultra 130W white flexible version incl. charge controller PRS
300. Dimensions: 920 x 800 x 3 mm, glued on the sleeping roof. For all
Reimo sleeping roofs except Caddy 1SW21 1000,--
Solar system for Caddy Maxi 110W white flexible version incl. charge Panels on sleeping roof VW T5/T6
controller PRS 300. Dimensions: 1125 x 540 x 3 mm, gluedon the sleeping
roof. 1SW22 1099,--

Solar module sets for retrofitting for roofs with
110-150 watt module output Solar complete PF-110 PF-110 Black Square-135 PF-150 Black
White
•MPPT charge controller included set 110 W 110 W White 150 W
135 W
Module power WP
•Roof feed-through included Power Wh/day 400 400 400 540
Profiflex-110 Set White or Black: price cracker set with the Carbest 110 Solar panel 1 x 853170 1 x 853172 1x 853175 1 x 85329
W solar module. For example for light, water pump, occasional heating Position controller 851005 851005 851005 851005
Profiflex-150 Set Black: Set with the Carbest 150 W solar module. e.g. Controller power 165 W 165 W 165 W 165 W
85201
for light, pump, TV/Sat, heating and possibly compressor refrigerator Cable gland 85201 85201 85201 1470x540x3
Dimensions in mm 1125 x 540 x 3 1100 x 540 x 860 x 800 x 3
Material carrier plate Black modules made of sturdy fiberglass, White Caddy sleeping Caddy sleeping Reimo sleeping Reimo
modules made of more flexible highly bendable TPT Suitable for roof, high roof roof, high roof roofs High roof
All sets with MPPT charge controller 12 V/150 W (12.5 A) for gel, AGM, Art. No. 85272 85271 85277 85275
acid or LiFePO4 batteries. 2 separate battery circuits. 2 panels connect- Price 369,-- 379,-- 419,-- 549,--
able, standby consumption: 5 mA TIP: For bonding the modules to the
vehicle roof, we recommend cleaner 29415, primer 294470 and adhesive MPPT controllers delivered up to 25% more current than conven-
294112 tional charge controllers in our tests.

ACCESSORIES FOR HIGH ROOFS

Aluminium high roof pop-up window Sealing compound
Ideal window for Reimo high roofs or also alcoves. Very good ventila- For installation of windows, roof hoods, trunk lids and other elements with
tion in the roof. Mounting laterally with stable outer frame in silver frames. On the exterior surfaces of motorhomes, vans and caravans.
with a wall thickness of 30-35 mm. Cut-out dimension 460 x 160 DEKASEAL 8936 dabable sealant
mm. During installation, a wooden subframe (not included) must be Colour: anthracite 310 ml 50030 14,95
mounted. Depending on the installation situation, this must be manu- GP 37,90/1liter
factured by the customer. 34432 271,-- Colour: light grey 310 ml 500306 14,95
GP 37,90/1liter
Replacement sash for window 34432: 34433 205,--
Sika Lastomer 710 permanently elastic sealant
S-4 pop-up window including inner frame, insect screen Does not harden excessively under UV radiation
and blackout roller blind 31201 545,-- Colour: white 310 ml 38062 14,30
GP 35,45/1liter
Window covering profiles Colour: Black 310 ml 38060 14,30
GP 35,45/1liter
Perfect transition to the interior cladding. The profile is cut to the depth of
the respective wall thickness, glued or fastened with cap screws (not
included)
Interior profile rod 2 m Light grey 38000 14,95

or high roof wall
Installation tip window
Insert window from the outside into the cut-out (approx. 1 mm larger
than frame dimension) and screw it against the necessary wooden frame
with clamps and screws. Use above sealing compound for sealing. Fin-
ish inside with interior window trim.

www.reimo.com 141
