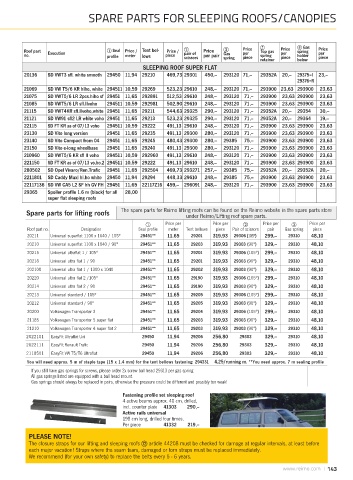

Page 143 - REIMO - VAN CONVERSION catalogue

SPARE PARTS FOR SLEEPING ROOFS/CANOPIES

Gas
Roof part Seal Price / Tent bel- Price / Price Price Top gas Price spring Price
no. Execution profile meter lows piece pair of per pair Gas per spring per holder per
piece
piece
piece
scissors
spring
below
retainer
SLEEPING ROOF SUPER FLAT
20136 SD VWT3 sfl. white smooth 29450 11,94 29210 469,73 29301 450,-- 293120 71,-- 29352A 20,-- 29375=l 23,--
29376=R
21069 SD VW T5/6 KR hiho, white 294511 10,59 29269 523,23 29610 248,-- 293120 71,-- 293900 23,63 293900 23,63
21075 SD VWT5/6 LR 2pcs.hiho sf 29451 11,65 292891 512,53 29610 248,-- 293120 71,-- 293900 23,63 293900 23,63
21085 SD VWT5/6 LR sfl.IIvoho 294511 10,59 292981 502,90 29610 248,-- 293120 71,-- 293900 23,63 293900 23,63
21115 SD VWT4KR sfl.IIvoho,white 29451 11,65 29211 544,63 29325 290,-- 293120 71,-- 29352A 20,-- 29354 30,--
21121 SD VW91 sfl2 LR white voho 29451 11,65 29213 523,23 29325 290,-- 293120 71,-- 29352A 20,-- 29364 19,--
22115 SD FT KR as of 07/13 voho 294511 10,59 29222 491,13 29610 248,-- 293120 71,-- 293900 23,63 293900 23,63
23130 SD Vito long version 29451 11,65 29235 491,13 29300 280,-- 293120 71,-- 293900 23,63 293900 23,63
23140 SD Vito Compact from 04 29451 11,65 29245 480,43 29300 280,-- 29385 75,-- 293900 23,63 293900 23,63
23150 SD Vito e-long wheelbase 29451 11,65 29240 491,13 29300 280,-- 293120 71,-- 293900 23,63 293900 23,63
210960 SD VWT5/6 KR sfl II voho 294511 10,59 292960 491,13 29610 248,-- 293120 71,-- 293900 23,63 293900 23,63
221150 SD FT KR as of 07/13 vo.ho.2 294511 10,59 29222 491,13 29610 248,-- 293120 71,-- 293900 23,63 293900 23,63
280502 SD Opel Vivaro/Ren.Trafic 29451 11,65 292504 469,73 293271 257,-- 29385 75,-- 29352A 20,-- 29352A 20,--
2211801 SD Caddy Maxi hi.ho white 29450 11,94 29294 448,33 29610 248,-- 29385 75,-- 293900 23,63 293900 23,63
22117136 SD VW CA5 L2 SF hh GV FH 29451 11,65 22117Z16 459,-- 296091 248,-- 293120 71,-- 293900 23,63 293900 23,63
29365 Spoiler profile 1.6 m (black) for all 28,00
super flat sleeping roofs

Spare parts for lifting roofs The spare parts for Reimo lifting roofs can be found on the Reimo website in the spare parts store
under Reimo/Lifting roof spare parts.
Price per Price per Price per Price per
Roof part no. Designation Seal profile meter Tent bellows piece Pair of scissors pair Gas spring piece
20211 Universal superflat 1100 x 1040 / 105° 29451** 11,65 29201 319,93 29306 (105°) 299,-- 29310 48,10
20210 Universal superflat 1100 x 1040 / 90° 29451** 11,65 29203 319,93 29303 (90°) 329,-- 29310 48,10
20215 Universal ultraflat 1 / 105° 29451** 11,65 29201 319,93 29306 (105°) 299,-- 29310 48,10
20216 Universal ultra flat 1 / 90 29451** 11,65 29201 319,93 29303 (90°) 329,-- 29310 48,10
202100 Universal ultra flat 1 / 1300 x 1040 29451** 11,65 29202 319,93 29303 (90°) 329,-- 29310 48,10
20220 Universal ultra flat 2 /105° 29451** 11,65 29190 319,93 29306 (105°) 299,-- 29310 48,10
20214 Universal ultra flat 2 / 90 29451** 11,65 29190 319,93 29303 (90°) 329,-- 29310 48,10
20213 Universal standard / 105° 29451** 11,65 29205 319,93 29306 (105°) 299,-- 29310 48,10
20212 Universal standard / 90° 29451** 11,65 29205 319,93 29303 (90°) 329,-- 29310 48,10
20200 Volkswagen Transporter 3 29451** 11,65 29204 319,93 29306 (105°) 299,-- 29310 48,10
21185 Volkswagen Transporter 5 super flat 29451** 11,65 29203 319,93 29303 (90°) 329,-- 29310 48,10
21210 Volkswagen Transporter 4 super flat 2 29451** 11,65 29203 319,93 29303 (90°) 329,-- 29310 48,10
2022101 EasyFit Ultraflat Uni 29450 11,94 29206 256,80 29303 329,-- 29310 48,10
2022111 EasyFit Renault Trafic 29450 11,94 29206 256,80 29303 329,-- 29310 48,10
2118501 EasyFit VW T5/T6 Ultraflat 29450 11,94 29206 256,80 29303 329,-- 29310 48,10
You will need approx. 5 m of staple tape (15 x 1.4 mm) for the tent bellows fastening: 294331 4.25/running m. **You need approx. 7 m sealing profile
If you still have gas springs for screws, please order 2x screw ball head 29313 per gas spring
All gas springs listed are equipped with a ball head mount.
Gas springs should always be replaced in pairs, otherwise the pressure could be different and possibly too weak!
Fastening profile set sleeping roof
4 active beams approx. 40 cm, drilled,
incl. counter plate 41303 290,--
Active rails universal
198 cm long, drilled four times.
Per piece 41332 219,--
PLEASE NOTE!
The closure straps for our lifting and sleeping roofs article 44208 must be checked for damage at regular intervals, at least before
each major vacation! Straps where the seam tears, damaged or torn straps must be replaced immediately.
We recommend (for your own safety) to replace the belts every 5 - 6 years.

www.reimo.com 143
