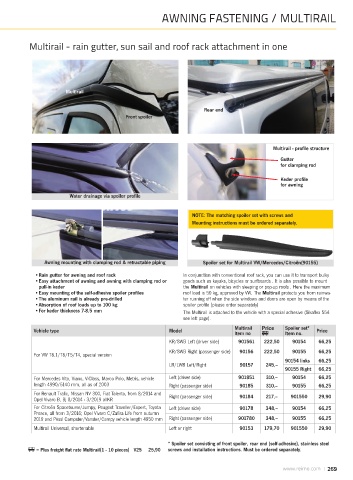

Page 269 - REIMO - VAN CONVERSION catalogue

AWNING FASTENING / MULTIRAIL

Multirail - rain gutter, sun sail and roof rack attachment in one

Multirail

Rear end
Front spoiler

Multirail - profile structure

Gutter
for clamping rod

Keder profile
for awning
Water drainage via spoiler profile

NOTE: The matching spoiler set with screws and
Mounting instructions must be ordered separately.

Awning mounting with clamping rod & retractable piping Spoiler set for Multirail VW/Mercedes/Citroën(90155)

•Rain gutter for awning and roof rack In conjunction with conventional roof rack, you can use it to transport bulky
•Easy attachment of awning and awning with clamping rod or goods such as kayaks, bicycles or surfboards . It is also possible to mount
pull-in keder the Multirail on vehicles with sleeping or pop-up roofs . Here the maximum
•Easy mounting of the self-adhesive spoiler profiles roof load is 50 kg, approved by VW. The Multirail protects you from rainwa-
•The aluminum rail is already pre-drilled ter running off when the side windows and doors are open by means of the
•Absorption of roof loads up to 100 kg spoiler profile (please order separately)
•For keder thickness 7-8,5 mm The Multirail is attached to the vehicle with a special adhesive (Sikaflex 554
see left page).

Vehicle type Model Multirail Price Spoiler set* Price
Item no Item no.
KR/SWB Left (driver side) 901561 222,50 90154 66,25
KR/SWB Right (passenger side) 90156 222,50 90155 66,25
For VW T6.1/T6/T5/T4, special version
90154 links 66,25
LR/LWB Left/Right 90157 245,--
90155 Right 66,25
For Mercedes Vito, Viano, V-Class, Marco Polo, Metris, vehicle Left (driver side) 901851 310,-- 90154 66,25
length 4990/5140 mm, all as of 2003 Right (passenger side) 90185 310,-- 90155 66,25
For Renault Trafic, Nissan NV 300, Fiat Talento, from 8/2014 and Right (passenger side) 90184 217,-- 901550 29,90
Opel Vivaro B, Bj 8/2014 - 3/2019 allKR
For Citroën Spacetourer/Jumpy, Peugeot Traveller/Expert, Toyota Left (driver side) 90178 348,-- 90154 66,25
Proace, all from 3/2016; Opel Vivaro C/Zafira Life from autumn
2019 and Pössl Campster/Vanster/Campy vehicle length 4950 mm Right (passenger side) 901780 348,-- 90155 66,25
Multirail Universal, shortenable Left or right 90153 179,70 901550 29,90

* Spoiler set consisting of front spoiler, rear end (self-adhesive), stainless steel
= Plus freight flat rate Multirail(1 - 10 pieces) V25 25,90 screws and installation instructions. Must be ordered separately.

www.reimo.com 269
