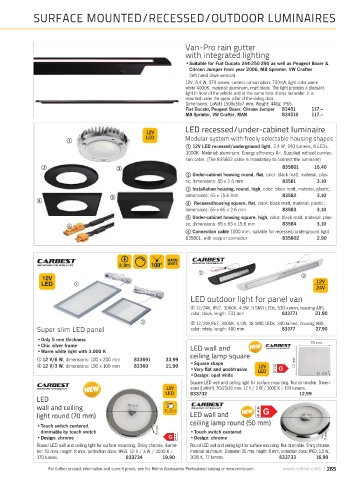

Page 265 - REIMO - VAN CONVERSION catalogue
P. 265

SURFACE MOUNTED/RECESSED/OUTDOOR LUMINAIRES





                                                                Van-Pro rain gutter
                                                                with integrated lighting

                                                                •Suitable for Fiat Ducato 244-250-290 as well as Peugeot Boxer &
                                                                 Citroen Jumper from year 2006, MB Sprinter, VW Crafter
                                                                 (left hand drive version)
                                                                12V, 8,4 W, 370 lumen, current consumption: 700mA, light color warm
                                                                white 4000K, material: aluminum, matt black. The light provides a pleasant
                                                                light in front of the vehicle and at the same time drains rainwater .It is
                                                                mounted under the upper pillar of the sliding door.
                                                                Dimensions: LxWxH 1500x36x7 mm. Weight: 440g. IP65.
                                                                Fiat Ducato, Peugeot Boxer, Citroen Jumper  83451  117,--
                                                                MB Sprinter, VW Crafter, MAN    834510    117,--
                                                               LED recessed/under-cabinet luminaire
                                                  12V
                                                  LED          Modular system with freely selectable housing shapes
                                                                  12V LED recessed/underground light, 3.4 W, 240 lumens, 6 LEDs,
                                                                3000K. Material: aluminum. Energy efficiency A+. Supplied without connec-
                                                                tion cable. (The 835802 cable is mandatory to connect the luminaire)
                                                                                                835801     16,40
                                                                  Under-cabinet housing round, flat, color: black matt, material, plas-
                                                                tic, dimensions: 65 x 2.6 mm    83581       3,10
                                                                  Installation housing, round, high, color: black matt, material, plastic,
                                                                dimensions: 65 x 15.6 mm        83582       3,10
                                                                  Recessedhousing square, flat, color: black matt, material, plastic,
                                                                dimensions: 65 x 65 x 2.6 mm    83583       3,10
                                                                  Under-cabinet housing square, high, color: black matt, material, plas-
                                                                tic, dimensions: 65 x 65 x 15.6 mm  83584   3,10
                                                                  Connection cable 1000 mm, suitable for recessed/underground light
                                                                835801, with snap-in connector  835802      2,90







               12V
               LED                                                                                          12V
                                                                                                            24V
                                                                 LED outdoor light for panel van
                                                                   12/24V, IP67, 3000K, 4,5W, 9 SMD LEDs, 530 lumen, housing ABS,
                                                                 color: black, length: 231 mm   833771     21,90
                                                                   12/24V,P67, 3000K, 4,5W, 18 SMD LEDs, 340 lumen, housing ABS,
              Super slim LED panel                               color: white, length: 480 mm   83377      27,90

              •Only 5 mm thickness
              •Chic silver frame                                 LED wall and                             70 mm
              •Warm white light with 3,000 K                     ceiling lamp square
               12 V/6 W, dimensions: 100 x 200 mm  833691  33,99
               12 V/3 W, dimensions: 100 x 100 mm  83369  21,90  •Square shape          12V         70 mm
                                                                 •Very flat and unobtrusive  LED
                                                                 •Design: opal white                        10 mm
                                                                 Square LED wall and ceiling light for surface mounting. Not dimmable. Dimen-
                                                         12V     sions (LxWxH): 70x70x10 mm, 12 V / 3 W / 3000 K / 199 lumens.
                                                         LED     833732                               12,99
             LED
             wall and ceiling               70 mm
             light round (70 mm)                        TOUCH    LED wall and                          50 mm

             •Touch switch centered,                             ceiling lamp round (50 mm)
               dimmable by touch switch               8 mm       •Touch switch centered
             •Design: chrome                                     •Design: chrome                               8 mm
             Round LED wall and ceiling light for surface mounting. Shiny chrome, diame-  Round LED wall and ceiling light for surface mounting. Not dimmable. Shiny chrome,
             ter: 70 mm, height: 8 mm, protection class: IP60, 12 V / 3 W / 3000 K /  material: aluminum. Diameter: 50 mm, height: 8 mm, protection class: IP60, 1.5 W,
             170 lumen.                    833734       19,90    3000 K, 72 lumens.            833733       16,90
                 For further product information and current prices, see the Reimo Accessories Professional catalog or www.reimo.com  www.reimo.com  265
