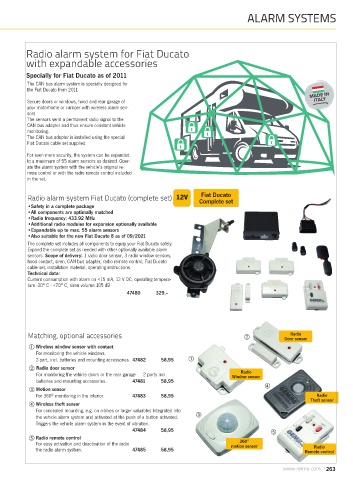

Page 263 - REIMO - VAN CONVERSION catalogue
P. 263

ALARM SYSTEMS






          Radio alarm system for Fiat Ducato
          with expandable accessories

          Specially for Fiat Ducato as of 2011
          The CAN bus alarm system is specially designed for
          the Fiat Ducato from 2011
                                                                                                         MADE IN
          Secure doors or windows, hood and rear garage of                                                 ITALY
          your motorhome or camper with wireless alarm sen-
          sors
          The sensors send a permanent radio signal to the
          CAN bus adapter and thus ensure constant vehicle
          monitoring.
          The CAN bus adapter is installed using the special
          Fiat Ducato cable set supplied

          For even more security, the system can be expanded
          to a maximum of 55 alarm sensors as desired. Oper-
          ate the alarm system with the vehicle's original re-
          mote control or with the radio remote control included
          in the set.

                                                                     Fiat Ducato
          Radio alarm system Fiat Ducato (complete set) 12V         Complete set
          •Safety in a complete package
          •All components are optimally matched
          •Radio frequency: 433.92 MHz
          •Additional radio modules for expansion optionally available
          •Expandable up to max. 55 alarm sensors
          •Also suitable for the new Fiat Ducato 8 as of 09/2021
          The complete set includes all components to equip your Fiat Ducato safely.
          Expand the complete set as needed with other optionally available alarm
          sensors. Scope of delivery: 1 radio door sensor, 3 radio window sensors,
          hood contact, siren, CAN bus adapter, radio remote control, Fiat Ducato
          cable set, installation material, operating instructions
          Technical data:
          Current consumption with alarm on <15 mA, 12 V DC, operating tempera-
          ture -30° C - +70° C, siren volume 105 dB
                                            47480     329,--







          Matching, optional accessories                                                         Door sensor
                                                                                                   Radio
             Wireless window sensor with contact
             For monitoring the vehicle windows.
             2-part, incl. batteries and mounting accessories. 47482  58,95
             Radio door sensor
                                                                                  Radio
             For monitoring the vehicle doors or the rear garage  2 parts incl.  Window sensor
             batteries and mounting accessories.  47481  58,95
             Motion sensor
             For 360° monitoring in the interior.  47483  58,95                                             Radio
                                                                                                          Theft sensor
             Wireless theft sensor
             For concealed mounting, e.g. on e-bikes or larger valuables Integrated into
             the vehicle alarm system and activated at the push of a button activated.
             Triggers the vehicle alarm system in the event of vibration.
                                              47484    58,95
             Radio remote control
                                                                                  360°
             For easy activation and deactivation of the radio                 motion sensor
                                                                                                           Radio
             the radio alarm system.          47485    58,95                                            Remote control

                                                                                                www.reimo.com 263
