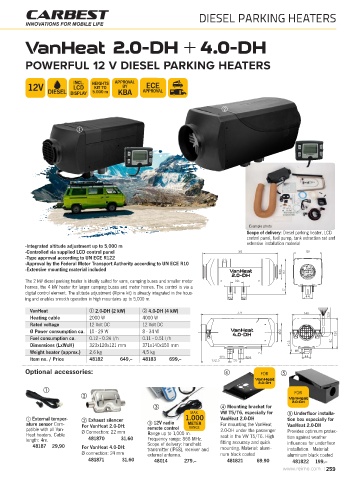

Page 259 - REIMO - VAN CONVERSION catalogue
P. 259

DIESEL PARKING HEATERS









          POWERFUL 12 V DIESEL PARKING HEATERS


          12V             INCL.  HEIGHTS  APPROVAL  ECE
                                          BY
                          LCD
                                 KIT TO
                 DIESEL DISPLAY  5.000 m  KBA    APPROVAL
























                                                                                     Example photo
                                                                                    Scope of delivery: Diesel parking heater, LCD
                                                                                    control panel, fuel pump, tank extraction set and
                                                                                    extensive installation material
          -Integrated altitude adjustment up to 5,000 m
          -Controlled via supplied LCD control panel
          -Type approval according to UN ECE R122
          -Approval by the Federal Motor Transport Authority according to UN ECE R10
          -Extensive mounting material included
          The 2 kW diesel parking heater is ideally suited for vans, camping buses and smaller motor
          homes, the 4 kW heater for larger camping buses and motor homes. The control is via a
          digital control element. The altitude adjustment (Alpine kit) is already integrated in the hous-
          ing and enables smooth operation in high mountains up to 5,000 m.

           VanHeat               2.0-DH (2 kW)     4.0-DH (4 kW)
           Heating cable       2000 W            4000 W
           Rated voltage       12 Volt DC        12 Volt DC
           Ø Power consumption ca. 10 - 29 W     8 - 34 W
           Fuel consumption ca.  0.12 - 0.24 l/h  0.11 - 0.51 l/h
           Dimensions (LxWxH)  323x120x121 mm    371x140x150 mm
           Weight heater (approx.)  2,6 kg       4,5 kg
           Item no. / Price    48182      649,--  48183   699,--
          Optional accessories:                                                          FOR



                                                                                                    FOR

                                                                              Mounting bracket for
                                                                 MAX.      VW T5/T6, especially for  Underfloor installa-
            External temper-   Exhaust silencer                1.000       VanHeat 2.0-DH         tion box especially for
          ature sensor Com-  For VanHeat 2.0-DH:     12V radio  METER      For mounting the VanHeat  VanHeat 2.0-DH
          patible with all Van-  Ø Connection: 22 mm  remote control  RANGE  2.0-DH under the passenger  Provides optimum protec-
          Heat heaters. Cable                      Range up to 1,000 m.    seat in the VW T5/T6. High  tion against weather
          length: 4m.          481870     31,60    Frequency range: 868 MHz.  fitting accuracy and quick  influences for underfloor
            48187  29,90     For VanHeat 4.0-DH:   Scope of delivery: handheld  mounting. Material: alumi-  installation. Material:
                                                   transmitter (IP68), receiver and
                             Ø connection: 24 mm   external antenna.       num black coated       aluminum black coated
                               481871     31,60      48014     279,--         481821    69,90       481822  199,--
