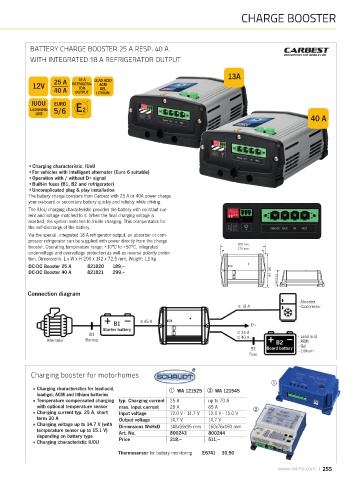

Page 255 - REIMO - VAN CONVERSION catalogue

CHARGE BOOSTER

BATTERY CHARGE BOOSTER 25 A RESP. 40 A
WITH INTEGRATED 18 A REFRIGERATOR OUTPUT

13A
25 A 18 A LEAD ACID
12V REFRIGERA- AGM
TOR-
40 A OUTPUT LITHIUM
GEL
IUOU EURO *
LADEKENN- 5/6 E2
LINE
40 A

•Charging characteristic: IUoU
•For vehicles with intelligent alternator (Euro 6 suitable)
•Operation with / without D+ signal
•Built-in fuses (B1, B2 and refrigerator)
•Uncomplicated plug & play installation
The battery charge boosters from Carbest with 25 A or 40A power charge
your on-board or secondary battery quickly and reliably while driving.
The IUoU charging characteristic provides the battery with constant cur-
rent and voltage matched to it. When the final charging voltage is
reached, the system switches to trickle charging. This compensates for
the self-discharge of the battery
Via the special, integrated 18 A refrigerator output, an absorber or com-
pressor refrigerator can be supplied with power directly from the charge
booster. Operating temperature range: +10°C to +50°C. Integrated 200 mm
179 mm
undervoltage and overvoltage protection as well as reverse polarity protec-
Dimensions Weight Recom. bat. tion. Dimensions: L x W x H 200 x 142 x 72,5 mm, Weight: 1,1 kg
Product Item no. Price
mm approx. capacity DC-DC Booster 25 A 821820 189,--
10 A 176 x 176 x 95 1,3 kg 50-100 Ah 80283 119,-- DC-DC Booster 40 A 821821 299,-- 142 mm
15 A 176 x 176 x 95 1,3 kg 50-150 Ah 80284 179,-- 72.5 mm
NEW: 10 A 176 x 176 x 95 1,3 kg 50-100 Ah 80286 129,--
(Li version) Connection diagram
NEW: 15 A 176 x 176 x 95 1,3 kg 50-150 Ah 80287 189,--
(Li version) ≤ 18 A - Absorber
- Compressor
NEW: 20 A 176 x 176 x 95 1,3 kg 100-200 Ah 80288 219,--
(Li version)
B1 ≤ 45 A D+
Starter battery
B1 ≤ 25 A - Lead acid
Alternator Backup ≤ 40 A B2 - AGM
B2 Board battery - Gel
- Lithium
Fuse

Charging booster for motorhomes

• Charging characteristics for lead-acid, WA 121525 WA 121545
lead-gel, AGM and lithium batteries
• Temperature compensated charging typ. Charging current 25 A up to 70 A
with optional temperature sensor max. input current 28 A 65 A
• Charging current typ. 25 A, short Input voltage 12.0 V - 14.7 V 12.0 V - 15.0 V
term 30 A Output voltage 14,7 V 14,7 V
• Charging voltage up to 14.7 V (with Dimensions WxHxD 148x59x95 mm 160x76x160 mm
temperature sensor up to 15.1 V) Art. No. 800243 800244
depending on battery type
• Charging characteristic IU0U Price 218,-- 511,--

Thermosensor for battery monitoring E6741 30,90
