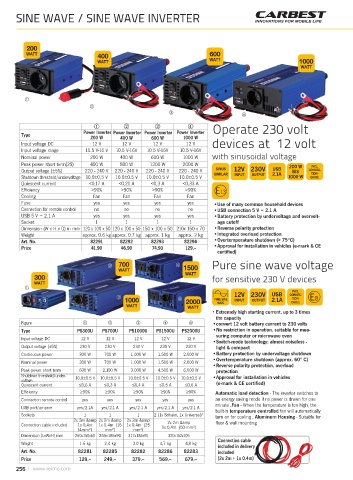

Page 256 - REIMO - VAN CONVERSION catalogue

SINE WAVE / SINE WAVE INVERTER

200
WATT 400 600
WATT WATT 1000
WATT
*

Operate 230 volt
Power Inverter Power Inverter Power Inverter Power Inverter
Type
200 W 400 W 600 W 1000 W
Input voltage DC 12 V 12 V 12 V 12 V devices at 12 volt
Input voltage range 10.5 V-16 V 10.5 V-16V 10.5 V-16V 10.5 V-16V
Nominal power 200 W 400 W 600 W 1000 W with sinusoidal voltage
Peak power short term(2S) 400 W 800 W 1200 W 2000 W 200 W INCL.
Output voltage (±5%) 220 - 240 V 220 - 240 V 220 - 240 V 220 - 240 V SINUS 12V 230V USB BIS CONNEC-
TION-
Shutdown threshold/undervoltage 10,0±0,5 V 10.0±0.5 V 10.0±0.5 V 10.0±0.5 V SIMILAR INPUT OUTPUT 2.1A 1000 W CABLE
Quiescent current <0,17 A <0,21 A <0,3 A <0,33 A
Efficiency >90% >90% >90% >90% E13
Cooling Fan Fan Fan Fan
Fuse yes yes yes yes •Use of many common household devices
Connection for remote control no no no no •USB connection 5 V ~ 2.1 A
USB 5 V ~ 2.1 A yes yes yes yes •Battery protection by undervoltage and overvolt-
Socket 1 1 1 1 age cutoff
Dimension (W x H x D) in mm 120 x 100 x 50 120 x 100 x 50 150 x 100 x 50 210x 150 x 70 •Reverse polarity protection
Weight approx. 0.6 kg approx. 0.7 kg approx. 1 kg approx. 2 kg •Integrated overload protection
Art. No. 82291 82292 82293 82294 •Overtemperature shutdown (> 75°C)
Price 41,90 46,90 74,90 129,-- •Approval for installation in vehicles (e-mark & CE
certified)
700 1500 Pure sine wave voltage
WATT
300 WATT for sensitive 230 V devices
WATT
INCL.
12V 230V USB CONNEC-
1000 2000 PURE SINE INPUT OUTPUT 2.1A CABLE
TION-
WAVE
WATT WATT
• Extremely high starting current, up to 3 times
the capacity
Figure •convert 12 volt battery current to 230 volts
Type PS300U PS700U PS1000U PS1500U PS2000U •No restriction in operation, suitable for mea-
suring computer or microwave oven
Input voltage DC 12 V 12 V 12 V 12 V 12 V
•Switch-mode technology: almost noiseless -
Output voltage (±5%) 230 V 230 V 230 V 230 V 230 V light & compact
Continuous power 300 W 700 W 1.000 W 1.500 W 2.000 W •Battery protection by undervoltage shutdown
•Overtemperature shutdown (approx. 60° C)
Nominal power 300 W 700 W 1.000 W 1.500 W 2.000 W
•Reverse polarity protection, overload
Peak power short term 600 W 2.100 W 3.000 W 4.500 W 6.000 W protection
Shutdown threshold/under- 10.0±0.5 V 10.0±0.5 V 10.0±0.5 V 10.0±0.5 V 10,0±0,5 V •Approval for installation in vehicles
voltage.
Quiescent current ≤0,6 A ≤0,3 A ≤0,4 A ≤0,5 A ≤0,6 A (e-mark & CE certified)
Efficiency ≥90% ≥90% ≥90% ≥90% ≥90% Automatic load detection - The inverter switches to
Connection remote control yes yes yes yes yes an energy saving mode if no power is drawn for one
minute .Fan - When the temperature is too high, the
USB port/ampere yes/2.1A yes/2.1 A yes/2.1 A yes/2.1 A yes/2.1 A built-in temperature controlled fan will automatically
Sockets 1 1 1 2 (1x Schuko, 1x Universal)* turn on for cooling . Aluminum Housing - Suitable for
2x 2m & 2x 2m & 2x 2m &
2x 2m &
Connection cable included 1x 0,4m 1x 0,4m (16 1x 0,4m (25 1x 0,4m (50 mm²) floor & wall mounting
(4mm²) mm²) mm²)
Dimension (LxWxH) mm 260x150x60 255x186x90 317x186x90 320x152x105
Weight 1.6 kg 2,4 kg 3.0 kg 4,7 kg 4,8 kg Connection cable
included in delivery
Art. No. 82281 82285 82282 82286 82283 included
Price 129,-- 249,-- 379,-- 569,-- 679,-- (2x 2m + 1x 0,4m)
256 www.reimo.com
