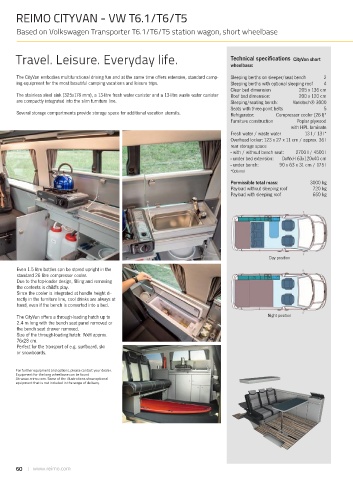

Page 60 - REIMO - VAN CONVERSION catalogue

REIMO CITYVAN - VW T6.1/T6/T5

Based on Volkswagen Transporter T6.1/T6/T5 station wagon, short wheelbase

Travel. Leisure. Everyday life. Technical specifications CityVan short

wheelbase:

The CityVan embodies multifunctional driving fun and at the same time offers extensive, standard camp- Sleeping berths on sleeper/seat bench 2
ing equipment for the most beautiful camping vacations and leisure trips. Sleeping berths with optional sleeping roof 4
Clear bed dimension 205 x 136 cm
The stainless steel sink (325x176 mm), a 13-litre fresh water canister and a 13-litre waste water canister Roof bed dimension: 200 x 120 cm
are compactly integrated into the slim furniture line. Sleeping/seating bench: Variotech® 3000
Seats with three-point belts 5
Several storage compartments provide storage space for additional vacation utensils. Refrigerator: Compressor cooler (26 l)*
Furniture construction Poplar plywood
with HPL laminate
Fresh water / waste water 13 l / 13 l*
Overhead locker: 123 x 27 x 11 cm / approx. 36 l
rear storage space
- with / without bench seat: 2700 l / 4500 l
- under bed extension: DxWxH 63x120x40 cm
- under bench: 90 x 63 x 31 cm / 175 l
*Optional
Permissible total mass: 3000 kg
Payload without sleeping roof 720 kg
Payload with sleeping roof 660 kg

Day position
Even 1.5 litre bottles can be stored upright in the
standard 26 litre compressor cooler.
Due to the top-loader design, filling and removing
the contents is child's play.
Since the cooler is integrated at handle height di-
rectly in the furniture line, cool drinks are always at
hand, even if the bench is converted into a bed.
The CityVan offers a through-loading hatch up to Night position
2.4 m long with the bench seat panel removed or
the bench seat drawer removed.
Size of the through-loading hatch: WxH approx.
76x28 cm.
Perfect for the transport of e.g. surfboard, ski
or snowboards.

For further equipment and options, please contact your dealer.
Equipment for the long wheelbase can be found
At: www.reimo.com. Some of the illustrations show optional
equipment that is not included in the scope of delivery.
