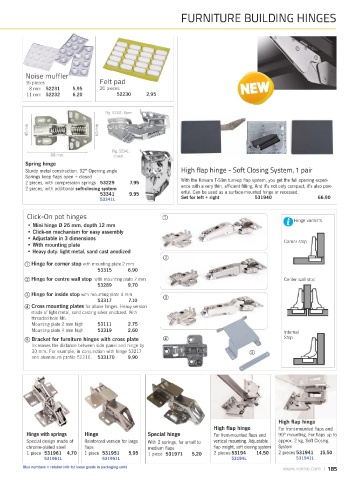

Page 185 - REIMO - VAN CONVERSION catalogue

FURNITURE BUILDING HINGES

Noise muffler
16 pieces Felt pad
8 mm 52231 5,95 20 pieces
11 mm 52232 6,20 52230 2,95

Fig. 53341: Open

45 mm 60 mm

Fig. 53341:
88 mm closed
Spring hinge
Sturdy metal construction. 92° Opening angle High flap hinge - Soft Closing System, 1 pair
Springs keep flaps open + closed
2 pieces, with compression springs 53229 7,95 With the Kinvaro T-Slim turn-up flap system, you get the full opening experi-
2 pieces, with additional soft-closing system ence with a very thin, efficient fitting. And it's not only compact, it's also pow-
53341 9,95 erful. Can be used as a surface-mounted hinge or recessed.
53341L Set for left + right 531940 66,90

Click-On pot hinges

• Mini hinge Ø 26 mm, depth 12 mm Hinge variants
• Click-on mechanism for easy assembly
• Adjustable in 3 dimensions
• With mounting plate Corner stop
• Heavy duty: light metal, sand cast anodized

Hinge for corner stop with mounting plate 2 mm
53315 6,90
Hinge for centre wall stop with mounting plate 2 mm Center wall stop
53289 9,70
Hinge for inside stop with mounting plate 4 mm
53317 7,10
Cross mounting plates for above hinges. Heavy version
made of light metal, sand casting silver anodized. With
threaded hole M6.
Mounting plate 2 mm high 53111 2,75
Mounting plate 4 mm high 53319 2,60 Internal
Bracket for furniture hinges with cross plate Stop
Increases the distance between side panel and hinge by
30 mm. For example, in conjunction with hinge 53217
and aluminium profile 52216. 533170 9,90

High flap hinge
High flap hinge For front-mounted flaps and
Hinge with springs Hinge Special hinge For front-mounted flaps and 90° mounting. For flaps up to
Special design made of Reinforced version for large With 2 springs, for small to vertical mounting. Adjustable approx. 2 kg, Soft Closing
chrome-plated steel flaps medium flaps flap weight, soft closing system System
1 piece 531961 4,70 1 piece 531951 5,95 1 piece 531971 5,20 2 pieces 53194 14,50 2 pieces 531941 15,50
531961L 531951L 53194L 531941L
Blue numbers = retailer info for loose goods in packaging units www.reimo.com 185
