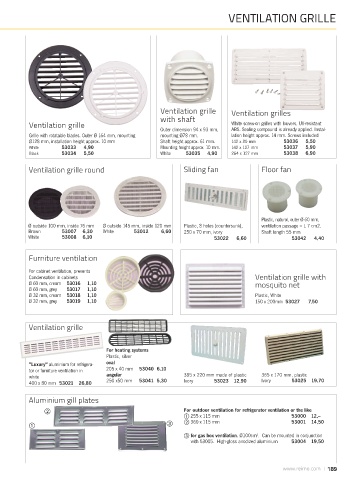

Page 189 - REIMO - VAN CONVERSION catalogue
P. 189

VENTILATION GRILLE


















                                                       Ventilation grille      Ventilation grilles
                                                       with shaft
           Ventilation grille                                                  White screw-on grilles with louvers. UV-resistant
                                                       Outer dimension 94 x 93 mm,  ABS. Sealing compound is already applied. Instal-
           Grille with rotatable blades. Outer Ø 164 mm, mounting  mounting Ø78 mm.  lation height approx. 14 mm. Screws included
           Ø128 mm, installation height approx. 10 mm  Shaft height approx. 61 mm.  142 x 80 mm  53036  5,50
           White      53033  4,90                      Mounting height approx. 10 mm.  142 x 127 mm  53037  5,90
           Black      53034  5,50                      White    53035  4,90    264 x 127 mm      53038  6,90
           Ventilation grille round                            Sliding fan               Floor fan










                                                                                         Plastic, natural, outer Ø 60 mm,
           Ø outside 100 mm, inside 76 mm  Ø outside 145 mm, inside 120 mm  Plastic, 8 holes (countersunk),  ventilation passage = L 7 cm2.
           Brown      53007  6,30   White     53012    6,60    250 x 70 mm, ivory        Shaft length 55 mm
           White      53008  6,10                                        53022   6,60              53042   4,40


           Furniture ventilation

           For cabinet ventilation, prevents
           Condensation in cabinets                                                    Ventilation grille with
           Ø 60 mm, cream  53016  1,10                                                 mosquito net
           Ø 60 mm, grey  53017  1,10
           Ø 32 mm, cream  53018  1,10                                                 Plastic, White
           Ø 32 mm, grey  53019  1,10                                                  150 x 200mm 53027  7,50



           Ventilation grille



                                     For heating systems
                                     Plastic, silver
           "Luxury" aluminium for refrigera-  oval
           tor or furniture ventilation in  205 x 40 mm  53040 6,10
           white                     angular                   385 x 220 mm made of plastic  365 x 170 mm, plastic
           400 x 80 mm 53021 26,80   250 x50 mm  53041 5,30    Ivory     53023 12,90     Ivory     53025 19,70

           Aluminium gill plates

                                                               For outdoor ventilation for refrigerator ventilation or the like
                                                                 255 x 115 mm                      53000 12,--
                                                                 360 x 115 mm                      53001 14,50

                                                                 for gas box ventilation. Ø100cm . Can be mounted in conjunction
                                                                                        2
                                                                 with 53005. High-gloss anodized aluminium  53004 19,50



                                                                                                www.reimo.com  189
