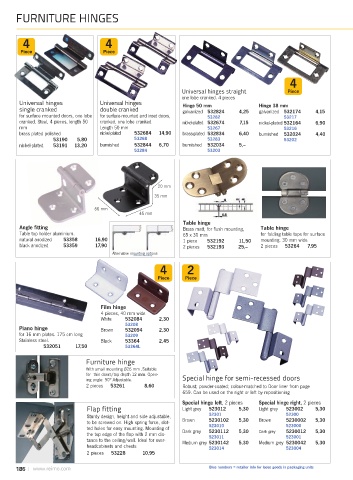

P. 186

FURNITURE HINGES




         4                           4
        Piece                       Piece




                                                                                                   4
                                                              Universal hinges straight           Piece
                                                              one lobe cranked. 4 pieces
        Universal hinges           Universal hinges            Hinge 50 mm              Hinge 38 mm
        single cranked             double cranked              galvanized 532824  4,25  galvanized 532174  4,15
        for surface mounted doors, one lobe  for surface-mounted and inset doors,  53282         53217
        cranked. Steel, 4 pieces, length 50  cranked. one lobe cranked  nickel-plated 532674  7,15  nickel-plated 532164  6,90
        mm                         Length 50 mm                        53267                     53216
        brass plated polished      nickel-plated  532684  14,90  brass-plated 532834  6,40  burnished  532024  4,40
                   53190   5,80               53268                    53283                     53202
        nickel-plated  53191  13,20  burnished  532844  6,70   burnished  532034  5,--
                                              53284                    53203






                                                      20 mm
                                                     35 mm
                                 60 mm
                                                45 mm
                                                               Table hinge
        Angle fitting                                          Brass matt, for flush mounting,  Table hinge
        Table top holder aluminium.                            65 x 30 mm                for folding table tops for surface
        natural anodized  53358  16,90                         1 piece  532192    11,50  mounting. 30 mm wide
        black anodized  53359    17,90                         2 pieces  532193  25,--   2 pieces  53264  7,95
                                       Alternative mounting options
                                                       4        2

                                                      Piece    Piece




                                   Film hinge
                                   4 pieces, 40 mm wide
                                   White   532084      2,30
                                           53208
       Piano hinge                 Brown   532094      2,30
       for 16 mm plates. 175 cm long       53209
       Stainless steel.            Black   53364       2,45
                532051    17,50            53364L

                              Furniture hinge
                              With small mounting Ø26 mm .Suitable
                              for thin doors/top depth 12 mm. Open-  Special hinge for semi-recessed doors
                              ing angle: 90°.Adjustable.
                              2 pieces  53261     8,60         Robust; powder-coated; colour-matched to Door liner from page
                                                               659. Can be used on the right or left by repositioning
                                                              Special hinge left, 2 pieces  Special hinge right, 2 pieces
                              Flap fitting                    Light grey  523012  5,30  Light grey  523002  5,30
                              Sturdy design, height and side adjustable,  52301                  52300
                              to be screwed on. High spring force, slot-  Brown  5230102  5,30  Brown  5230002  5,30
                              ted holes for easy mounting. Mounting of  523010                   523000
                              the top edge of the flap with 2 mm dis-  Dark grey  5230112  5,30  Dark grey  5230012  5,30
                                                                       523011
                                                                                                 523001
                              tance to the ceiling/wall. Ideal for over-  Medium grey 5230142  5,30  Medium grey 5230042  5,30
                              headcabinets and chests                  523014                    523004
                              2 pieces  53228    10,95
      186   www.reimo.com                                               Blue numbers = retailer info for loose goods in packaging units
