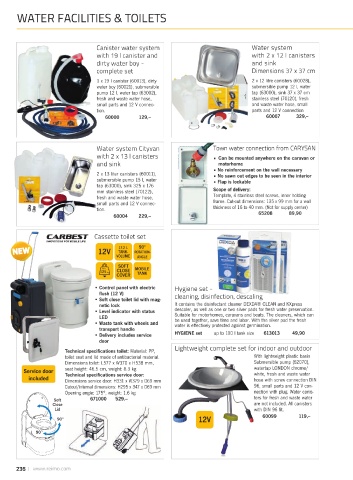

P. 236

WATER FACILITIES & TOILETS





                                  Canister water system                               Water system
                                  with 19 l canister and                              with 2 x 12 l canisters
                                  dirty water boy -                                   and sink
                                  complete set                                        Dimensions 37 x 37 cm
                                  1 x 19 l canister (60013), dirty                    2 x 12 litre canisters (60028),
                                  water boy (60021), submersible                      submersible pump 12 l, water
                                  pump 12 l, water tap (63002),                       tap (63000), sink 37 x 37 cm
                                  fresh and waste water hose,                         stainless steel (70120), fresh
                                  small parts and 12 V connec-                        and waste water hose, small
                                  tion.                                               parts and 12 V connection
                                    60000       129,--                                     60007     329,--




                                  Water system Cityvan                   Town water connection from CARYSAN
                                  with 2 x 13 l canisters                • Can be mounted anywhere on the caravan or
                                  and sink                                 motorhome
                                                                         • No reinforcement on the wall necessary
                                  2 x 13 liter canisters (60011),        • No sawn out edges to be seen in the interior
                                  submersible pump 15 l, water           • Flap is lockable
                                  tap (63000), sink 325 x 176
                                  mm stainless steel (70122),            Scope of delivery:
                                  fresh and waste water hose,            Template, 4 stainless steel screws, inner holding
                                  small parts and 12 V connec-           frame. Cut-out dimensions: 135 x 99 mm for a wall
                                  tion.                                  thickness of 16 to 40 mm. (Not for supply center)
                                       60004    229,--                                  65208     89,90


                                 Cassette toilet set
                                                90°
                                  12V    17,2 L  ROTATION-
                                         TANK-
                                        VOLUME  ANGLE
                                         SOFT
                                   MAX.  CLOSE  MOBILE
                                   125 kg      TANK
                                        COVER
                                 • Control panel with electric  Hygiene set -
                                  flush (12 V)              cleaning, disinfection, descaling
                                 • Soft close toilet lid with mag-
                                  netic lock                It contains the disinfectant cleaner DEXDA® CLEAN and KXpress
                                 • Level indicator with status  descaler, as well as one or two silver pads for fresh water preservation.
                                                            Suitable for motorhomes, caravans and boats. The cleaners, which can
                                  LED                       be used together, save time and labor. With the silver pad the fresh
                                 • Waste tank with wheels and  water is effectively protected against germination.
                                  transport handle
                                 • Delivery includes service  HYGIENE set  up to 100 l tank size  613013  49,90
                                  door
                                                            Lightweight complete set for indoor and outdoor
                       Technical specifications toilet: Material: PP,
                       toilet seat and lid made of antibacterial material.             With lightweight plastic basin
                       Dimensions toilet: L577 x W370 x H538 mm,                       Submersible pump (62070),
         Service door  seat height: 46.5 cm, weight: 8.3 kg                            watertap LONDON chrome/
                                                                                       white, fresh and waste water
           included    Technical specifications service door:                          hose with screw connection DIN
                       Dimensions service door: H331 x W379 x D69 mm
                       Cutout/internal dimensions: H295 x 347 x D69 mm                 96, small parts and 12 V con-
                       Opening angle: 175°, weight: 1.6 kg                             nection with plug. Water canis-
                   Soft        671000   529,--                                         ters for fresh and waste water
                   Close                                                               are not included. All canisters
                   Lid                                                                 with DIN 96 fit.
                    90°                                             12V                  60099        119,--
             90°
