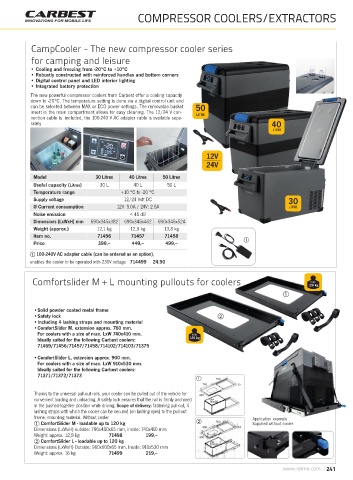

Page 241 - REIMO - VAN CONVERSION catalogue

COMPRESSOR COOLERS/EXTRACTORS

CampCooler - The new compressor cooler series
for camping and leisure

• Cooling and freezing from -20°C to +10°C
• Robustly constructed with reinforced handles and bottom corners
• Digital control panel and LED interior lighting
• Integrated battery protection
The new powerful compressor coolers from Carbest offer a cooling capacity
down to -20°C. The temperature setting is done via a digital control unit and
can be selected between MAX or ECO power settings. The removable basket 50
insert in the main compartment allows for easy cleaning. The 12/24 V con- LITRE
nection cable is included, the 100-240 V AC adapter cable is available sepa-
rately 40
LITRE

12V
24V

Model 30 Litres 40 Litres 50 Litres
Useful capacity (Litres) 30 L 40 L 50 L
Temperature range +10 °C to -20 °C
Supply voltage 12/24 Volt DC 30
Ø Current consumption 12V: 5.0A / 24V: 2.5A LITRE
Noise emission < 45 dB
Dimensions (LxWxH) mm 690x345x382 690x345x462 690x345x524
Weight (approx.) 12,1 kg 12,9 kg 13,8 kg
Item no. 71456 71457 71458
Price 399,-- 449,-- 499,--

100-240V AC adapter cable (can be ordered as an option),
enables the cooler to be operated with 230V voltage 714499 24,90

Comfortslider M + L mounting pullouts for coolers 120 kg
max.

•Solid powder coated metal frame
•Safety lock
•Including 4 lashing straps and mounting material
•ComfortSlider M, extension approx. 760 mm.
For coolers with a size of max. LxW 740x410 mm. max.
Ideally suited for the following Carbest coolers: 120 kg
71469/71456/71457/71458/714102/714103/71375

•ComfortSlider L, extension approx. 900 mm.
For coolers with a size of max. LxW 910x530 mm.
Ideally suited for the following Carbest coolers:
71371/71372/71373
790
760 65
Thanks to the universal pull-out rails, your cooler can be pulled out of the vehicle for 480
convenient loading and unloading. A safety lock ensures that the rail is firmly anchored max
740x410
in the pushed-together position while driving. Scope of delivery: fastening pull-out, 4
lashing straps with which the cooler can be secured (on lashing eyes) to the pull-out
frame, mounting material. Without cooler Application example
ComfortSlider M - loadable up to 120 kg 960 Supplied without cooler.
Dimensions (LxWxH) outside: 790x480x65 mm, inside: 740x410 mm 900 65
Weight: approx. 12,8 kg 71498 199,-- 600
ComfortSlider L - loadable up to 120 kg max
Dimensions (LxWxH) Outside: 960x600x65 mm, Inside: 910x530 mm 910x530
Weight: approx. 16 kg 71499 219,--

www.reimo.com 241
