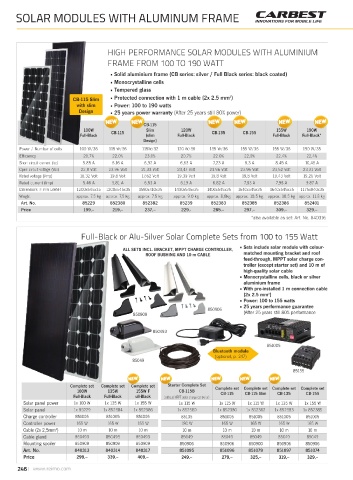

Page 246 - REIMO - VAN CONVERSION catalogue

SOLAR MODULES WITH ALUMINUM FRAME

HIGH PERFORMANCE SOLAR MODULES WITH ALUMINIUM
FRAME FROM 100 TO 190 WATT

• Solid aluminium frame (CB series: silver / Full Black series: black coated)
• Monocrystalline cells
• Tempered glass
2
CB-115 Slim • Protected connection with 1 m cable (2x 2.5 mm )
with slim • Power: 100 to 190 watts
Design • 25 years power warranty (After 25 years still 80% power)

CB-115
100W Slim 120W 155W 190W
Full-Black CB-115 (slim Full-Black CB-135 CB-155 Full-Black Full-Black*
Design)
Power / Number of cells 100 W/36 115 W/36 115W/32 120 W/36 135 W/36 155 W/36 155 W/36 190 W/35
Efficiency 20,7% 22,0% 23,0% 20,7% 22,0% 22,0% 22,4% 22,4%
Short circuit current (Isc) 5,85 A 6,16 A 6,92 A 6,63 A 7,23 A 8,3 A 8,45 A 10,46 A
Open circuit voltage (Voc) 22,8 Volt 23.96 Volt 21,33 Volt 23,47 Volt 23.96 Volt 23.96 Volt 23,52 Volt 23,31 Volt
Rated voltage (Vmp) 18.32 Volt 19,8 Volt 17,62 Volt 19,39 Volt 19,8 Volt 19,8 Volt 19,43 Volt 19,26 Volt
Rated current (Imp) 5,46 A 5,81 A 6,53 A 6,19 A 6,82 A 7,83 A 7,98 A 9,87 A
Dimensions in mm LxWxH 1200x545x35 1200x545x35 1580x410x35 1400x545x35 1400x545x35 1640x545x35 1640x545x35 1175x840x35
Weight approx. 7,5 kg approx. 7,5 kg approx. 7,5 kg approx. 9.0 kg approx. 8,8kg approx. 10,5 kg approx. 10,5 kg approx. 11.8 kg
Art. No. 85229 852380 852382 85239 852383 852385 852386 852401
Price 199,-- 219,-- 237,-- 229,- 285,-- 297,-- 309,-- 329,--
*also available as set: Art. No. 840316

Full-Black or Alu-Silver Solar Complete Sets from 100 to 155 Watt

• Sets include solar module with colour-
ALL SETS INCL. BRACKET, MPPT CHARGE CONTROLLER,
ROOF BUSHING AND 10 m CABLE matched mounting bracket and roof
feed-through, MPPT solar charge con-
troller (except starter set) and 10 m of
high-quality solar cable
• Monocrystalline cells, black or silver
aluminium frame
• With pre-installed 1 m connection cable
(2x 2.5 mm )
2
• Power: 100 to 155 watts
• 25 years performance guarantee
850906
850909 (After 25 years still 80% performance

850493

851005
Bluetooth module
(optional, p. 247)
85049
85135

Complete set Complete set Complete set Starter Complete Set Complete set Complete set Complete set Complete set
100W 135W 155W F CB-115B CB-115 CB-115 Slim CB-135 CB-155
Full-Black Full-Black ull-Black (without MPPT solar charge controller)
Solar panel power 1x 100 W 1x 135 W 1x 155 W 1x 115 W 1x 115 W 1x 115 W 1x 135 W 1x 155 W
Solar panel 1x 85229 1x 852384 1x 852386 1x 852380 1x 852380 1x 852382 1x 852383 1x 852385
Charge controller 851005 851005 851005 85135 851005 851005 851005 851005
Controller power 165 W 165 W 165 W 180 W 165 W 165 W 165 W 165 W
Cable (2x 2,5mm ) 10 m 10 m 10 m 10 m 10 m 10 m 10 m 10 m
2
Cable gland 850493 850493 850493 85049 85049 85049 85049 85049
Mounting spoiler 850909 850909 850909 850906 850906 850900 850906 850906
Art. No. 840313 840314 840317 851095 851096 851079 851097 851074
Price 299,-- 339,-- 409,-- 249,-- 279,-- 325,-- 319,-- 329,--
