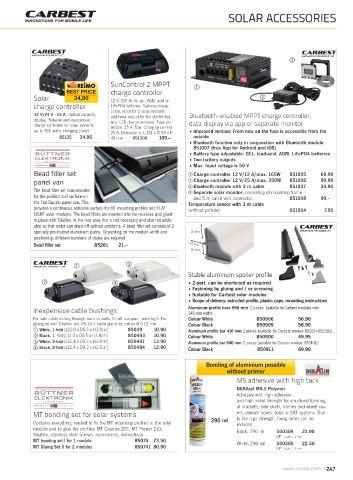

P. 247

SOLAR ACCESSORIES













                                      SunControl 2 MPPT
                       BEST PRICE     charge controller
            Solar         34,90       12 V/320 W, for gel, AGM, acid or
            charge controller         LiFePO4 batteries. 5-phase charge

            12 V/24 V - 15 A. Optical capacity  curve, input for 2 solar modules,  Bluetooth-enabled MPPT charge controller,
                                      additional output for the starter bat-
            display. Reliable and inexpensive
 CB-115     charge controller for solar systems  tery. LED charge indicator. Fuse pro-  data display via app or separate monitor
 100W  Slim  120W  155W  190W  up to 360 watts charging power.  tection: 25 A. Max. Charging current  • Improved version: From now on the fuse is accessible from the
 Full-Black  CB-115  (slim  Full-Black  CB-135  CB-155  Full-Black  Full-Black*  85135  34,90  25 A. Dimensions: L 151 x W 90 x H  outside
                                                       169,--
 Design)                              48 mm   851308             • Bluetooth function only in conjunction with Bluetooth module
 Power / Number of cells  100 W/36  115 W/36  115W/32  120 W/36  135 W/36  155 W/36  155 W/36  190 W/35  851007 (free App for Android and iOS)
 Efficiency  20,7%  22,0%  23,0%  20,7%  22,0%  22,0%  22,4%  22,4%  • Battery type adjustable: GEL, lead-acid, AGM, LiFePO4 batteries
                                                                 • Two battery outputs
 Short circuit current (Isc)  5,85 A  6,16 A  6,92 A  6,63 A  7,23 A  8,3 A  8,45 A  10,46 A  • Max. Input voltage is 50 V
 Open circuit voltage (Voc)  22,8 Volt  23.96 Volt  21,33 Volt  23,47 Volt  23.96 Volt  23.96 Volt  23,52 Volt  23,31 Volt  Bead filler set
 Rated voltage (Vmp)  18.32 Volt  19,8 Volt  17,62 Volt  19,39 Volt  19,8 Volt  19,8 Volt  19,43 Volt  19,26 Volt  Charge controller 12 V/12 A/max. 165W  851005  69,90
 Rated current (Imp)  5,46 A  5,81 A  6,53 A  6,19 A  6,82 A  7,83 A  7,98 A  9,87 A  panel van  Charge controller 12 V/25 A/max. 350W  851006  99,90
                                                                                                             34,90
                                                                                                   851007
                                                                  Bluetooth module with 3 m cable
 Dimensions in mm LxWxH  1200x545x35  1200x545x35  1580x410x35  1400x545x35  1400x545x35  1640x545x35  1640x545x35  1175x840x35  The bead filler set compensates  Separate solar monitor, consisting of mounting frame
 Weight  approx. 7,5 kg  approx. 7,5 kg  approx. 7,5 kg  approx. 9.0 kg  approx. 8,8kg  approx. 10,5 kg  approx. 10,5 kg approx. 11.8 kg  for the profiled roof surface on  and 5 m cable with connector.  851008  99,--
 Art. No.  85229  852380  852382  85239  852383  852385  852386  852401  the Fiat Ducato panel van. This  Temperature sensor with 3 m cable
 Price  199,--  219,--  237,--  229,-  285,--  297,--  309,--  329,--  provides a continuous adhesive surface for MT mounting profiles and FLAT  (without picture)  851004  7,95
            LIGHT solar modules. The bead fillers are inserted into the recesses and glued
            in place with Sikaflex. In the rear area this is not necessary and also not advis-
            able so that water can drain off without problems. A bead filler set consists of 2
            specially pre-treated aluminium plates. Depending on the module width and  35 mm
            positioning, different numbers of plates are required.
                                                                       62 mm
            Bead filler set      85261   21,--                   12 mm
                                                                 25 mm
                                                                       63 mm
                                                                Stable aluminum spoiler profile
                                                                • 2-part, can be shortened as required
                                                                • Fastening by gluing and / or screwing
                                                                • Suitable for Carbest solar modules
                                                                • Scope of delivery: extruded profile, plastic caps, mounting instructions
            Inexpensive cable bushings                          Aluminum profile bars 550 mm 2 pieces (suitable for Carbest modules with
                                                                545 mm width)
            For safe cable routing through roofs or walls. Small, compact, watertight. For  Colour White  850906  56,90
            gluing on with Sikaflex incl. PG 13.5 cable gland for cables Ø 6-12 mm.  Colour Black  850909  56,90
              White, 1-fold (L12.0 x D6.5 x H3.8cm)  85049  10,90  Aluminum profile bar 410 mm 2 pieces (suitable for Carbest module 85285+852382)
              Black, 1 -fold(L12.0 x D6.5 x H3.8cm)  850493  10,90  Colour White       850900         49,95
              White, 2-fold (L12,4 x D9,3 x H3,8cm)  850491  12,90  Aluminum profile bar 840 mm 2 pieces (suitable for Carbest module 852401)
              Black, 2-fold (L12,4 x D9,3 x H3,8cm)  850494  12,90  Colour Black        850911        69,90


                                                                      Bonding of aluminium possible
                                                                             without primer
                                                                                 MS adhesive with high tack
                                                                                 DEKAsyl MS-5 Polymer
                                                                                 Adhesive with high adhesion
                                                                                 and high initial strength for structural bonding
                                                                                 of brackets, side skirts, frames and wheel cov-
            MT bonding set for solar systems                                     ers, climate boxes, solar or SAT systems. Due
            Contains everything needed to fix the MT mounting profiles to the solar  290 ml  to the high strength, fixing times can be
                                                                                 reduced.
            module and to glue the profiles: MT Cleaner 205, MT Primer 210,      Black, 290 ml  500304  23,90
            Sikaflex, stainless steel screws, accessories, instructions.                      GP* 74,86 / 1 liter
            MT bonding set I for 1 module     85074 73,50                        White, 290 ml  500305  22,50
            MT Gluing Set II for 2 modules    850741 80,90                                    GP* 74,86 / 1 liter



                                                                                                www.reimo.com 247
