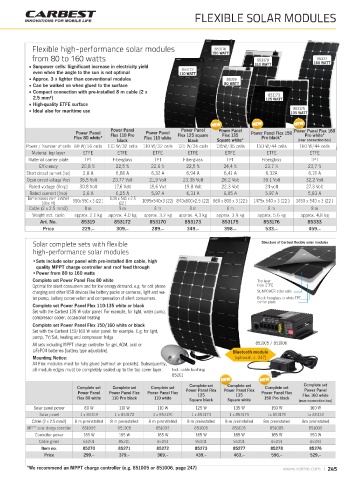

Page 245 - REIMO - VAN CONVERSION catalogue
P. 245

FLEXIBLE SOLAR MODULES





            Flexible high-performance solar modules                      853176
            from 80 to 160 watts                                        150 WATT        853170              85333
           • Sunpower cells: Significant increase in electricity yield                 110 WATT            160 WATT
                                                              853172
            even when the angle to the sun is not optimal    110 WATT
           • Approx. 3 x lighter than conventional modules                   85319
           • Can be walked on when glued to the surface                      80 WATT
           • Compact connection with pre-installed 8 m cable (2 x
                                                                                           853173
            2.5 mm²)                                                                       125 WATT
           • High-quality ETFE surface
                                                                                                    853175
           • Ideal also for maritime use                                                           135 WATT

                                      Power Panel             Power Panel  Power Panel              Power Panel Flex 160
                           Power Panel            Power Panel                         Power Panel Flex 150
                          Flex 80 white*  Flex 110 Pro  Flex 110 white  Flex 125 square  Flex 135  Pro black*  Pro white*
                                         black                  black     Square white*               (rear connection box)
          Power / Number of cells 80 W/56 cells  110 W/32 cells  110 W/32 cells 125 W/36 cells  135W/36 cells  150 W/44 cells  160 W/44 cells
            Material top layer  ETFE     ETFE       ETFE        ETFE         ETFE          ETFE          ETFE
           Material carrier plate  TPT  Fiberglass   TPT       Fiberglass    TPT         Fiberglass       TPT
              Efficiency    20,8 %      22,5 %      22,6 %      22,5 %      24,4 %        23,7 %         23,7 %
          Short circuit current (Isc)  2,8 A  6,88 A  6,32 A    6,94 A      6,41 A         6,32A         6,18 A
          Open circuit voltage Voc)  36,5 Volt  20.77 Volt  21,9 Volt  23,36 Volt  26.2 Volt  30.1 Volt  32.2 Volt
           Rated voltage (Vmp)  30.8 Volt  17,6 Volt  18,6 Volt  19,8 Volt  22,3 Volt     24 volt       27,3 Volt
           Rated current (Imp)  2,6 A   6,25 A      5,97 A      6,31 A      6,05 A        5,97 A         5,83 A
          Dimensions mm LxWxH  980x 550 x 3 (22 )  1100 x 540 x 2.5  1095x540x3 (22) 840x800x2,5 (22) 860 x 800 x 3 (22 )  1475x 540 x 3 (22 )  1460 x 540 x 3 (22 )
               (Box H)                   (22 )
           Cable (2 x 2.5 mm2)  8 m      8 m         8 m         8 m          8 m          8 m            8 m
            Weight incl. cable  approx. 2.1 kg  approx. 4.0 kg  approx. 3.2 kg  approx. 4,3 kg  approx. 3.9 kg  approx. 5.6 kg  approx. 4,8 kg
               Art. No.     85319      853172      853170      853173       853175        853176         85333
               Price         229,--     309,--      289,--      349,--       398,--       533,--         459,--

            Solar complete sets with flexible                                            Structure of Carbest flexible solar modules
            high-performance solar modules
            •Sets include solar panel with pre-installed 8m cable, high
             quality MPPT charge controller and roof feed through
            •Power from 80 to 160 watts
            Complete set Power Panel Flex 80 white                                      Top layer
            Optimal for silent consumers and for low energy demand. e.g. for cell phone  from ETFE
            charging and other USB devices like battery packs or cameras, light and wa-  SUNPOWER solar cells
            ter pump, battery conservation and compensation of silent consumers.        Black fiberglass or white TPT
                                                                                        carrier plate
            Complete set Power Panel Flex 110-135 white or black
            Set with the Carbest 135 W solar panel. For example, for light, water pump,
            compressor cooler, occasional heating
            Complete set Power Panel Flex 150/160 white or black
            Set with the Carbest 150/160 W solar panel. for example. E.g. for light,
            pump, TV/Sat, heating and compressor fridge
            All sets including MPPT charge controller for gel, AGM, acid or            851005 / 851006
            LiFePO4 batteries (battery type adjustable).                       Bluetooth module
            Mounting Notice:                                                    (optional, p. 247)
            All Flex modules must be fully glued (without air pockets). Subsequently,
            all module edges must be completely sealed up to the top cover layer.  Incl. cable bushing
                                                           85201

                           Complete set  Complete set  Complete set  Complete set  Complete set  Complete set  Complete set
                           Power Panel  Power Panel Flex  Power Panel Flex  Power Panel Flex  Power Panel Flex  Power Panel Flex  Power Panel
                                                                                135
                                                                    125
                                                                                                       Flex 160 white
                           Flex 80 white  110 Pro black  110 white  Square black  Square white  150 Pro black  (rear connection box)
            Solar panel power  80 W      110 W        110 W        125 W        135 W       150 W        160 W
              Solar panel   1 x 85319   1 x 853172   1 x 853170  1 x 853173   1 x 853175   1x 853176     1x 85333
            Cable (2 x 2.5 mm2)  8 m preinstalled  8 m preinstalled  8 m preinstalled  8 m preinstalled  8 m preinstalled  8m preinstalled  8m preinstalled
          MPPT solar charge controller  851005  851005  851005     851005      851005       851005       851006
             Controller power  165 W     165 W        165 W        165 W        165 W       165 W        350 W
              Cable gland    85201       85201        85201        85201        85201       85201        85201
               Item no.      85270       85271        85272        85273        85277       85278        85276
                Price        299,--      379,--       369,--       439,--       463,--      596,--        529,--

          *We recommend an MPPT charge controller (e.g. 851005 or 851006, page 247)             www.reimo.com  245
