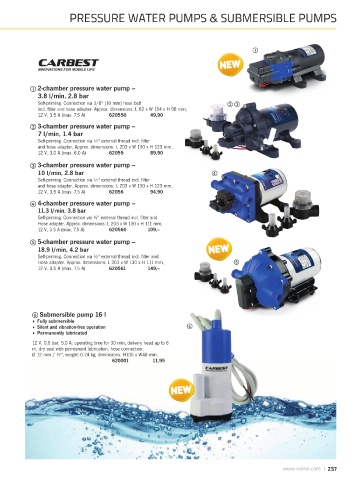

Page 237 - REIMO - VAN CONVERSION catalogue

PRESSURE WATER PUMPS & SUBMERSIBLE PUMPS

2-chamber pressure water pump –
3.8 l/min, 2.8 bar
Self-priming. Connection via 3/8" (10 mm) hose bolt
incl. filter and hose adapter. Approx. dimensions: L 62 x W 154 x H 98 mm,
12 V, 3.5 A (max. 7.5 A) 620550 49,90
3-chamber pressure water pump –
7 l/min, 1.4 bar
Self-priming. Connection via ½" external thread incl. filter
and hose adapter. Approx. dimensions: L 203 x W 130 x H 123 mm,
12 V, 3.0 A (max. 6.0 A) 62055 89,90
3-chamber pressure water pump –
10 l/min, 2.8 bar
Self-priming. Connection via ½" external thread incl. filter
and hose adapter. Approx. dimensions: L 203 x W 130 x H 123 mm,
12 V, 3.5 A (max. 7.5 A) 62056 94,90
4-chamber pressure water pump –
11.3 l/min, 3.8 bar
Self-priming. Connection via ½" external thread incl. filter and
Hose adapter. Approx. dimensions: L 203 x W 130 x H 111 mm,
12 V, 3.5 A (max. 7.5 A) 620560 109,--
5-chamber pressure water pump –
18.9 l/min, 4.2 bar
Self-priming. Connection via ½" external thread incl. filter and
Hose adapter. Approx. dimensions: L 203 x W 130 x H 111 mm,
12 V, 3.5 A (max. 7.5 A) 620561 149,--

Submersible pump 16 l
• Fully submersible
• Silent and vibration-free operation
• Permanently lubricated

12 V, 0.6 bar, 5.0 A, operating time for 30 min, delivery head up to 6
m, dry seal with permanent lubrication, hose connection:
Ø 12 mm / ½", weight: 0.24 kg, dimensions: H106 x W48 mm.
620001 11,95
