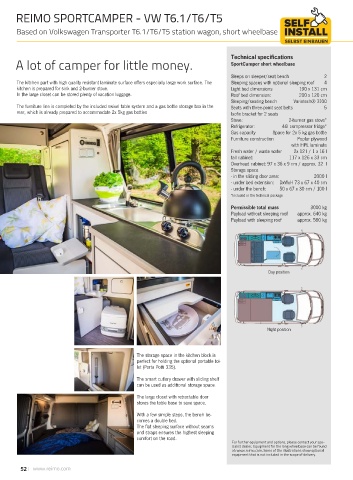

Page 52 - REIMO - VAN CONVERSION catalogue
P. 52

REIMO SPORTCAMPER - VW T6.1/T6/T5


       Based on Volkswagen Transporter T6.1/T6/T5 station wagon, short wheelbase




      A lot of camper for little money.                                        Technical specifications
                                                                               SportCamper short wheelbase
                                                                               Sleeps on sleeper/seat bench   2
       The kitchen part with high quality resistant laminate surface offers especially large work surface. The  Sleeping spaces with optional sleeping roof  4
       kitchen is prepared for sink and 2-burner stove.                        Light bed dimensions   190 x 131 cm
       In the large closet can be stored plenty of vacation luggage.           Roof bed dimension:    200 x 120 cm
                                                                               Sleeping/seating bench  Variotech® 3100
       The furniture line is completed by the included swivel table system and a gas bottle storage box in the  Seats with three-point seat belts  5
       rear, which is already prepared to accommodate 2x 5kg gas bottles       Isofix bracket for 2 seats
                                                                               Stove:             2-burner gas stove*
                                                                               Refrigerator:    46l compressor fridge*
                                                                               Gas capacity  Space for 2x 5 kg gas bottle
                                                                               Furniture construction  Poplar plywood
                                                                                                   with HPL laminate
                                                                               Fresh water / waste water  2x 12 l / 1 x 16 l
                                                                               tall cabinet:       117 x 126 x 33 cm
                                                                               Overhead cabinet: 97 x 36 x 9 cm / approx. 32 l
                                                                               Storage space
                                                                               - in the sliding door area:  2000 l
                                                                               - under bed extension:  DxWxH 73 x 67 x 40 cm
                                                                               - under the bench:  50 x 67 x 30 cm / 100 l
                                                                               *Included in the technical package
                                                                               Permissible total mass     3000 kg
                                                                               Payload without sleeping roof  approx. 640 kg
                                                                               Payload with sleeping roof  approx. 580 kg









                                                                                            Day position










                                                                                           Night position



                                               The storage space in the kitchen block is
                                               perfect for holding the optional portable toi-
                                               let (Porta Potti 335).

                                               The smart cutlery drawer with sliding shelf
                                               can be used as additional storage space.

                                               The large closet with retractable door
                                               stores the table base to save space.
                                               With a few simple steps, the bench be-
                                               comes a double bed.
                                               The flat sleeping surface without seams
                                               and straps ensures the highest sleeping
                                               comfort on the road.
                                                                               For further equipment and options, please contact your spe-
                                                                               cialist dealer. Equipment for the long wheelbase can be found
                                                                               at: www.reimo.com. Some of the illustrations show optional
                                                                               equipment that is not included in the scope of delivery.
