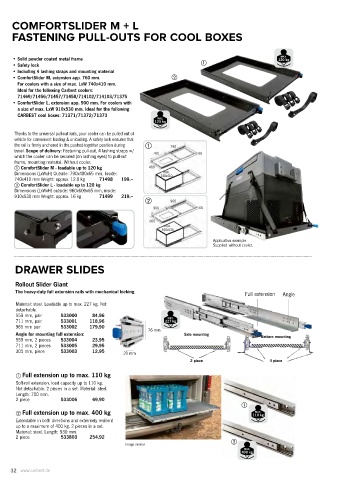

Page 32 - CARBEST 2024 EN

COMFORTSLIDER M + L
FASTENING PULL-OUTS FOR COOL BOXES

MAX.
• Solid powder coated metal frame 120 kg
• Safety lock a
• Including 4 lashing straps and mounting material
• ComfortSlider M, extension app. 760 mm. b
For coolers with a size of max. LxW 740x410 mm.
Ideal for the following Carbest coolers:
71469/71456/71457/71458/714102/714103/71375
• ComfortSlider L, extension app. 900 mm. For coolers with
a size of max. LxW 910x530 mm. Ideal for the following
CARBEST cool boxes: 71371/71372/71373
MAX.
120 kg
Thanks to the universal pull-out rails, your cooler can be pulled out of
vehicle for convenient loading & unloading. A safety lock ensures that
the rail is firmly anchored in the pushed-together position during a 790
travel. Scope of delivery: Fastening pull-out, 4 lashing straps w/ 760 65
which the cooler can be secured (on lashing eyes) to pull-out
frame, mounting material. Without cooler.
a ComfortSlider M - loadable up to 120 kg 480
max.
Dimensions (LxWxH) Outside: 790x480x65 mm, Inside: 740x410
740x410 mm Weight: approx. 12.8 kg 71498 199,--
b ComfortSlider L - loadable up to 120 kg
Dimensions (LxWxH) outside: 960x600x65 mm, inside:
910x530 mm Weight: approx. 16 kg 71499 219,--
b 960
900 65

600
max.
910x530
Application example
Supplied without cooler.

DRAWER SLIDES

Rollout Slider Giant
The heavy-duty full extension rails with mechanical locking
Full extension Angle
Material: steel. Loadable up to max. 227 kg. Not
detachable.
559 mm, pair 533000 84,96 MAX.
711 mm, pair 533001 118,96 227 kg
965 mm pair 533002 179,90
76 mm
Angle for mounting full extension: Side mounting Bottom mounting
559 mm, 2 pieces 533004 23,95
711 mm, 2 pieces 533005 29,95
305 mm, piece 533003 12,95 20 mm
2 piece 4 piece

a Full extension up to max. 110 kg
Soft-roll extension, load capacity up to 110 kg.
Not detachable. 2 pieces in a set. Material: steel.
Length: 700 mm.
2 piece 533006 69,90
a
b Full extension up to max. 400 kg 110 kg
MAX.
Extendable in both directions and extremely resilient
up to a maximum of 400 kg. 2 pieces in a set.
Material: steel. Length: 930 mm.
2 piece 533803 254,92
b
Image similar
MAX.
400 kg
