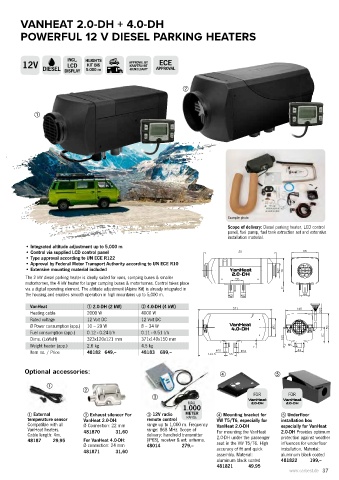

Page 37 - CARBEST 2024 EN

VANHEAT 2.0-DH + 4.0-DH

POWERFUL 12 V DIESEL PARKING HEATERS

INCL.
ECE
12V DIESEL DISPLAY HEIGHTS APPROVAL BY APPROVAL
KIT BIS
LCD
KRAFTFAHRT
5.000 m
-BUNDESAMT
b

a

Example photo
Scope of delivery: Diesel parking heater, LCD control
panel, fuel pump, fuel tank extraction set and extensive
installation material.
• Integrated altitude adjustment up to 5,000 m
• Control via supplied LCD control panel
• Type approval according to UN ECE R122
• Approval by Federal Motor Transport Authority according to UN ECE R10
• Extensive mounting material included
The 2 kW diesel parking heater is ideally suited for vans, camping buses & smaller
motorhomes, the 4 kW heater for larger camping buses & motorhomes. Control takes place
via a digital operating element. The altitude adjustment (Alpine Kit) is already integrated in
the housing and enables smooth operation in high mountains up to 5,000 m.
VanHeat a 2.0-DH (2 kW) b 4.0-DH (4 kW)
Heating cable 2000 W 4000 W
Rated voltage 12 Volt DC 12 Volt DC
Ø Power consumption (app.) 10 – 29 W 8 – 34 W
Fuel consumption (app.) 0.12 - 0.24 l/h 0.11 - 0.51 l/h
Dims. (LxWxH) 323x120x121 mm 371x140x150 mm
Weight heater (app.) 2,6 kg 4,5 kg
Item no. / Price 48182 649,-- 48183 699,--

Optional accessories: d e

a
b
c FOR FOR
MAX.
1.000
a External b Exhaust silencer For c 12V radio METER d Mounting bracket for e Underfloor
temperature sensor VanHeat 2.0-DH: remote control RANGE VW T5/T6, especially for installation box
Compatible with all Ø Connection: 22 mm range up to 1,000 m. Frequency VanHeat 2.0-DH especially for VanHeat
VanHeat heaters. 481870 31,60 range: 868 MHz. Scope of For mounting the VanHeat 2.0-DH Provides optimum
Cable length: 4m. delivery: handheld transmitter 2.0-DH under the passenger protection against weather
48187 29,95 For VanHeat 4.0-DH: (IP68), receiver & ext. antenna.
Ø connection: 24 mm 48014 279,-- seat in the VW T5/T6. High influences for underfloor
481871 31,60 accuracy of fit and quick installation. Material:
assembly. Material: aluminum black coated
aluminum black coated 481822 199,--
481821 49,95
www.carbest.de 37
