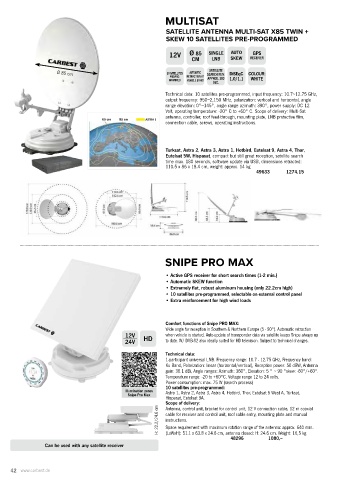

Page 42 - CARBEST 2024 EN

MULTISAT

SATELLITE ANTENNA MULTI-SAT X85 TWIN +
SKEW 10 SATELLITES PRE-PROGRAMMED

12V Ø 85 SINGLE AUTO GPS
CM LNB SKEW RECEIVER

SATELLITE
Ø 85 cm 10 SATELLITES AUTOMATIC SEARCH RUN: DiSEqC COLOUR:
PRE-PRO- RETRACTION AT
GRAMMED VEHICLE START APPROX. 180 1.0/1.1 WHITE
SEC.
Technical data: 10 satellites pre-programmed, input frequency: 10.7∼12.75 GHz,
output frequency: 950∼2,150 MHz, polarization: vertical and horizontal, angle
range elevation: 0°∼145°, angle range azimuth: 390°, power supply: DC 12
Volt, operating temperature: -20° C to +60° C. Scope of delivery: Multi-Sat
antenna, controller, roof feed-through, mounting plate, LNB protective film,
65 cm 85 cm ASTRA 1
connection cable, screws, operating instructions.

Turksat, Astra 2, Astra 3, Astra 1, Hotbird, Eutelsat 9, Astra 4, Thor,
Eutelsat 5W, Hispasat, compact but still great reception, satellite search
time max. 180 seconds, software update via USB, dimensions retracted:
110.5 x 86 x 18.4 cm, weight: approx. 14 kg
49633 1274,15

SNIPE PRO MAX

• Active GPS receiver for short search times (1-2 min.)
• Automatic SKEW function
• Extremely flat, robust aluminum housing (only 22.2cm high)
• 10 satellites pre-programmed, selectable on external control panel
• Extra reinforcement for high wind loads

Comfort functions of Snipe PRO MAX:
Wide angle for reception in Southern & Northern Europe (5 - 90°). Automatic retraction
12V HD when vehicle is started. Auto-update of transponder data via satellite keeps Snipe always up
24V to date. W/ DVB-S2 also ideally suited for HD television. Subject to technical changes.

Technical data:
1-participant universal LNB. Frequency range: 10.7 - 12.75 GHz, Frequency band:
Ku Band, Polarization: linear (horizontal/vertical), Reception power: 50 dBW, Antenna
gain: 36.1 dBi, Angle ranges: Azimuth: 360°, Elevation: 5 ° 90 °skew: -60°/+60°.
~
Temperature range: -20 to +60°C. Voltage range 12 to 24 volts.
Power consumption: max. 75 W (search process)
10 satellites pre-programmed:
Illumination zones Astra 1, Astra 2, Astra 3, Astra 4, Hotbird, Thor, Eutelsat 5 West A, Türksat,
Snipe Pro Max
Hispasat, Eutelsat 9A.
Scope of delivery:
Antenna, control unit, bracket for control unit, 12 V connection cable, 12 m coaxial
H: 22.2/24.6 cm cable for receiver and control unit, roof cable entry, mounting plate and manual
instructions.
Space requirement with maximum rotation range of the antenna: approx. 640 mm.
48296
(LxWxH): 51.1 x 63.8 x 24.6 cm, antenna closed: H: 24.6 cm. Weight: 16,5 kg
1080,--
Can be used with any satellite receiver
