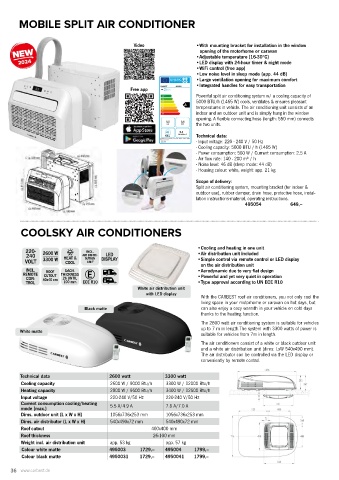

Page 36 - CARBEST 2024 EN

MOBILE SPLIT AIR CONDITIONER

Video • With mounting bracket for installation in the window
opening of the motorhome or caravan
• Adjustable temperature (16-30°C)
• LED display with 24-hour timer & night mode
• WiFi control (free app)
• Low noise level in sleep mode (app. 44 dB)
• Large ventilation opening for maximum comfort
• Integrated handles for easy transportation
CARBEST
495054
Free app EER
Powerful split air conditioning system w/ a cooling capacity of
5000 BTU/h (1465 W) cools, ventilates & ensures pleasant
temperatures in vehicle. The air conditioning unit consists of an
indoor and an outdoor unit and is simply hung in the window
opening. A flexible connecting hose (length: 550 mm) connects
1,5 2,6
the two units.
0,6
63 Technical data:
- Input voltage: 220 - 240 V / 50 Hz
- Cooling capacity: 5000 BTU / h (1465 W)
- Power consumption: 560 W / Current consumption: 2.5 A
- Air flow rate: 140 - 200 m³ / h
- Noise level: 46 dB (sleep mode: 44 dB)
- Housing colour: white, weight: app. 21 kg
Scope of delivery:
Split air conditioning system, mounting bracket (for indoor &
outdoor use), rubber damper, drain hose, protective hose, instal-
lation instructions-material, operating instructions.
495054 649,--

COOLSKY AIR CONDITIONERS

• Cooling and heating in one unit
220- 2600 W INCL. • Air distribution unit included
240 AIR DISTRI- LED
VOLT 3300 W HEAT & BUTION DISPLAY • Simple control via remote control or LED display
UNIT
COOL
on the air distribution unit
INCL. ROOF DACH- • Aerodynamic due to very flat design
REMOTE CUTOUT THICKNESS • Powerful and yet very quiet in operation
CON- 40x40 cm 26 UNTIL
TROL 100 mm ECE R10 • Type approval according to UN ECE R10
White air distribution unit
with LED display
With the CARBEST roof air conditioners, you not only cool the
living space in your motorhome or caravan on hot days, but
Black matte can also enjoy a cozy warmth in your vehicle on cold days
thanks to the heating function.
The 2600 watt air conditioning system is suitable for vehicles
up to 7 m in length.The system with 3300 watts of power is
White matte
suitable for vehicles from 7m in length.
The air conditioners consist of a white or black outdoor unit
and a white air distribution unit (dims: LxW 540x490 mm).
The air distributor can be controlled via the LED display or
conveniently by remote control.

Technical data 2600 watt 3300 watt
Cooling capacity 2600 W / 9000 Btu/h 3300 W / 12000 Btu/h
Heating capacity 2800 W / 9500 Btu/h 3400 W / 12500 Btu/h
Input voltage 220-240 V/50 Hz 220-240 V/50 Hz
Current consumption cooling/heating
mode (max.) 5.5 A/4.9 A 7.6 A/7.0 A
Dims. outdoor unit (L x W x H) 1056x736x253 mm 1056x736x253 mm
Dims. air distributor (L x W x H) 540x490x72 mm 540x490x72 mm
Roof cutout 400x400 mm
Roof thickness 26-100 mm
Weight incl. air distribution unit app. 53 kg app. 57 kg
Colour white matte 495003 1729,-- 495004 1799,--
Colour black matte 4950031 1729,-- 4950041 1799,--

36 www.carbest.de
