P. 161

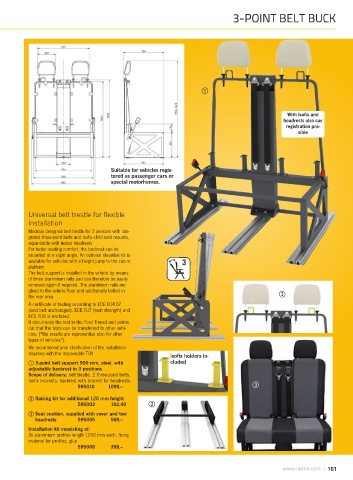

3-POINT BELT BUCK



















                                                                                                  With Isofix and
                                                                                                 headrests also car
                                                                                                 registration pos-
                                                                                                      sible






                                      Suitable for vehicles regis-
                                      tered as passenger cars or
                                      special motorhomes.




           Universal belt trestle for flexible
           installation
           Modular designed belt trestle for 2 persons with inte-
           grated three-point belts and Isofix child seat mounts,
           expandable with tested headrests
           For better seating comfort, the backrest can be
           mounted at a slight angle. An optional elevation kit is
           available for vehicles with a height jump to the cab or  3
           platform
           The belt support is installed in the vehicle by means
           of three aluminium rails and can therefore be easily
           removed again if required. The aluminium rails are
           glued to the vehicle floor and additionally bolted in
           the rear area.
           A certificate of testing according to ECE R14.07
           (seat belt anchorages), ECE R17 (seat strength) and
           ECE R16 is enclosed.
           It documents the test in the Ford Transit and points
           out that the tests can be transferred to other vehi-
           cles. ("the results are representive also for other
           types of vehicles").
           We recommend prior clarification of the installation
           situation with the responsible TÜV             Isofix holders in-
             3-point belt support 900 mm, steel, with     cluded
           adjustable backrest in 3 positions
           Scope of delivery: belt trestle, 2 three-point belts,
           Isofix brackets, backrest with bracket for headrests
                           595010    1098,--
             Raising kit for additional 120 mm height
                           595002     102,40
             Seat cushion, supplied with cover and two
             headrests     595005     569,--
           Installation kit consisting of:
           3x aluminium profiles length 1250 mm each, fixing
           material for profiles, glue
                           595006     398,--



                                                                                                www.reimo.com  161
