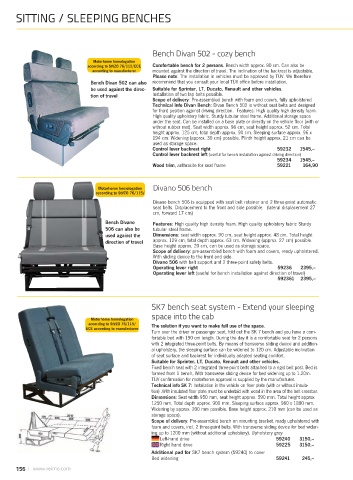

SITTING / SLEEPING BENCHES






                                                    Bench Divan 502 - cozy bench
                                Motorhome homologation
                               according to StVZO 76/115/ECE  Comfortable bench for 2 persons. Bench width approx. 90 cm. Can also be
                                according to manufacturer  mounted against the direction of travel. The inclination of the backrest is adjustable.
                                                    Please note: The installation in vehicles must be approved by TÜV. We therefore
                                Bench Divan 502 can also  recommend that you consult your local TÜV office before installation.
                                be used against the direc-  Suitable for Sprinter, LT, Ducato, Renault and other vehicles.
                                tion of travel      Installation of two lap belts possible.
                                                    Scope of delivery: Pre-assembled bench with foam and covers, fully upholstered
                                                    Technical info Divan Bench: Divan Bench 502 is without seat belts and designed
                                                    for front position against driving direction. Features: High quality high density foam.
                                                    High quality upholstery fabric. Sturdy tubular steel frame. Additional storage space
                                                    under the seat. Can be installed on a base plate or directly on the vehicle floor (with or
                                                    without rubber mat). Seat width approx. 96 cm, seat height approx. 52 cm. Total
                                                    height approx. 125 cm, total depth approx. 90 cm. Sleeping surface approx. 96 x
                                                    194 cm. Widening (approx. 30 cm) possible. Plinth height approx. 21 cm can be
                                                    used as storage space.
                                                    Control lever backrest right              59232   1545,--
                                                    Control lever backrest left (useful for bench installation against driving direction)
                                                                                              59234   1545,--
                                                    Wood trim, anthracite for seat frame      59221    164,90



                                  Motorhome homologation  Divano 506 bench
                                 according to StVZO 76/115/
                                                     Divano bench 506 is equipped with seat belt retainer and 2 three-point automatic
                                                     seat belts. Displacement to the front and side possible. (lateral displacement 27
                                                     cm, forward 17 cm)
                                     Bench Divano    Features: High quality high density foam. High quality upholstery fabric Sturdy
                                     506 can also be  tubular steel frame.
                                     used against the  Dimensions: seat width approx. 90 cm, seat height approx. 48 cm. Total height
                                     direction of travel  approx. 129 cm, total depth approx. 63 cm. Widening (approx. 27 cm) possible.
                                                     Base height approx. 20 cm, can be used as storage space.
                                                     Scope of delivery: pre-assembled bench with foam and covers, ready upholstered.
                                                     With sliding device to the front and side.
                                                     Divano 506 with belt support and 2 three-point safety belts.
                                                     Operating lever right                     59236  2395,--
                                                     Operating lever left (useful for bench installation against direction of travel)
                                                                                               592361  2395,--



                                                    SK7 bench seat system - Extend your sleeping
                                                    space into the cab
                                Motorhome homologation
                               according to StVZO 76/115/  The solution if you want to make full use of the space.
                              ECE according to manufacturer
                                                    Turn over the driver or passenger seat, fold out the SK 7 bench and you have a com-
                                                    fortable bed with 190 cm length. During the day it is a comfortable seat for 2 persons
                                                    with 2 integrated three-point belts. By means of transverse sliding device and addition-
                                                    al upholstery, the sleeping surface can be widened to 120 cm. Adjustable inclination
                                                    of seat surface and backrest for individually adapted seating comfort.
                                                    Suitable for Sprinter, LT, Ducato, Renault and other vehicles.
                                                    Fixed bench seat with 2 integrated three-point belts attached to a rigid belt post. Bed is
                                                    formed from 1 bench, With transverse sliding device for bed widening up to 1.20m.
                                                    TÜV confirmation for motorhome approval is supplied by the manufacturer.
                                                    Technical info SK 7: Installation in the vehicle on floor plate (with or without insula-
                                                    tion) .With insulated floor plate must be underlaid with wood in the area of the belt crossbar.
                                                    Dimensions: Seat width 950 mm, seat height approx. 590 mm. Total height approx.
                                                    1250 mm. Total depth approx. 900 mm. Sleeping surface approx. 960 x 1880 mm.
                                                    Widening by approx. 200 mm possible. Base height approx. 210 mm (can be used as
                                                    storage space).
                                                    Scope of delivery: Pre-assembled bench on mounting bracket, ready upholstered with
                                                    foam and covers, incl. 2 three-point belts. With transverse sliding device for bed widen-
                                                    ing up to 1200 mm (without additional upholstery). Upholstery grey
                                                       Left-hand drive                        59240   3150,--
                                                       Right hand drive                       59225   3150,--
                                                    Additional pad for SK7 bench system (59240) to cover
                                                    Bed widening                              59241    245,--
