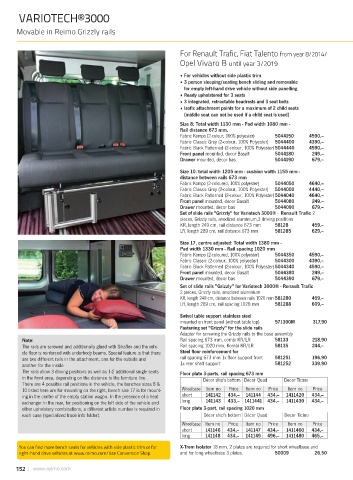

Page 152 - REIMO - VAN CONVERSION catalogue

VARIOTECH®3000

Movable in Reimo Grizzly rails

For Renault Trafic, Fiat Talento from year 8/2014/
Opel Vivaro B until year 3/2019

• For vehicles without side plastic trim
• 3 person sleeping/seating bench sliding and removable
for empty left-hand drive vehicle without side panelling
• Ready upholstered for 3 seats
• 3 integrated, retractable headrests and 3 seat belts
• Isofix attachment points for a maximum of 2 child seats
(middle seat can not be used if a child seat is used)
Size 8: Total width 1130 mm - Pad width 1080 mm -
Rail distance 673 mm.
Fabric Kompo (2-colour, 100% polyester) 5044150 4590,--
Fabric Classic Grey (2-colour, 100% Polyester) 5044400 4390,--
Fabric Black Patterned (2-colour, 100% Polyester)5044440 4590,--
Front panel mounted, decor Basalt 5044180 249,--
Drawer mounted, decor bas 5044190 679,--
Size 10: total width 1205 mm - cushion width 1155 mm -
distance between rails 673 mm
Fabric Kompo (2-coloured, 100% polyester) 5044050 4640,--
Fabric Classic Grey (2-colour, 100% Polyester) 5044000 4440,--
Fabric Black Patterned (2-colour, 100% Polyester)5044040 4640,--
Front panel mounted, decor Basalt 5044080 249,--
Drawer mounted, decor bas 5044090 679,--
Set of slide rails "Grizzly" for Variotech 3000® - Renault Trafic 2
pieces, Grizzly rails, anodized aluminium,3 driving positions
KR, length 249 cm, rail distance 673 mm 58128 459,--
LR, length 289 cm, rail distance 673 mm 581285 629,--
Size 17, centre adjusted: Total width 1380 mm -
Pad width 1330 mm - Rail spacing 1020 mm
Fabric Kompo (2-coloured, 100% polyester) 5044350 4590,--
Fabric Classic (2-colour, 100% polyester) 5044300 4390,--
Fabric Black Patterned (2-colour, 100% Polyester)5044340 4590,--
Front panel mounted, decor Basalt 5044380 249,--
Drawer mounted, decor bas 5044390 679,--
Set of slide rails "Grizzly" for Variotech 3000® - Renault Trafic
2 pieces, Grizzly rails, anodized aluminium
KR, length 249 cm, distance between rails 1020 mm 581280 459,--
LR, length 289 cm, rail spacing 1020 mm 581288 609,--

Swivel table support stainless steel
mounted on front panel (without table top) 571300M 317,90
Fastening set "Grizzly" for the slide rails
Adapter for screwing the Grizzly rails to the base assembly
Note: Rail spacing 673 mm, combi KR/LR 58133 218,90
The rails are screwed and additionally glued with Sikaflex and the vehi- Rail spacing 1020 mm, Kombi KR/LR 58135 244,--
cle floor is reinforced with underbody beams. Special feature is that there Steel floor reinforcement for
are two different rails in the attachment, one for the outside and rail spacing 673 mm 1x floor support front 581251 196,90
another for the inside 1x rear shelf support 581252 339,90
The rails allow 3 driving positions as well as 1-2 additional single seats Floor plate 3-parts, rail spacing 673 mm
in the front area, depending on the distance to the furniture line Décor ship's bottom Décor Quad Decor Ticino
There are 4 possible rail positions in the vehicle, the benches sizes 8 &
10 listed here are for mounting on the right, bench size 17 is for mount- Wheelbase Item no Price Item no Price Item no Price
ing in the centre of the empty station wagon. In the presence of a heat short 141142 434,-- 141144 434,-- 1411420 434,--
exchanger in the rear, for positioning on the left side of the vehicle and long 141143 433,-- 1411441 434,-- 1411430 434,--
other upholstery combinations, a different article number is required in Floor plate 3-part, rail spacing 1020 mm
each case (specialized trade info folder). Décor ship's bottom Décor Quad Decor Ticino
Wheelbase Item no Price Item no Price Item no Price
short 141146 434,-- 141147 434,-- 1411460 434,--
long 141148 434,-- 141149 496,-- 1411480 465,--
You can find more bench seats for vehicles with side plastic trim or for X-Trem Isolator 18 mm. 2 plates are required for short wheelbase and
right-hand drive vehicles at www.reimo.com/Van Conversion Shop. and for long wheelbase 3 plates. 50009 26,50
