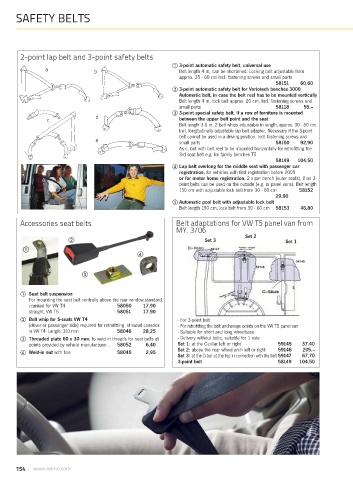

P. 154

SAFETY BELTS







        2-point lap belt and 3-point safety belts
                                                             3-point automatic safety belt, universal use.
                a                b                           Belt length 4 m, can be shortened. Locking belt adjustable from
                                                             approx. 35 - 60 cm Incl. fastening screws and small parts
                                                                                              58151   60,60
                                                             3-point automatic safety belt for Variotech benches 3000
                                                             Automatic belt, in case the belt reel has to be mounted vertically
                                                             Belt length 4 m, lock belt approx. 20 cm. Incl. fastening screws and
                                                             small parts                      58118    55,--
                                                             3-point special safety belt. If a row of furniture is mounted
                                 d
                 c                                           between the upper belt point and the seat
                                                             Belt length 3.6 m. 2 belt whips adjustable in length, approx. 30 - 60 cm.
                                                             Incl. longitudinally adjustable lap belt adapter. Necessary if the 3-point
                                                             belt cannot be used in a driving position. Incl. fastening screws and
                                 e                           small parts                      58150   92,90
                                                             As c, but with belt reel to be mounted horizontally for retrofitting the
                                                             3rd seat belt e.g. for family benches T5
                                                                                              58149  104,50
                                                             Lap belt overlong for the middle seat with passenger car
                                                             registration, for vehicles with first registration before 2005
               a                                             or for motor home registration, 2 x per bench (outer seats), if no 3-
                                                             point belts can be used on the outside (e.g. in panel vans). Belt length
                                                             150 cm with adjustable lock belt from 30 - 60 cm  58152
                                          d                                                   29,90
                                                             Automatic pool belt with adjustable lock belt
                                                             Belt length 150 cm, lock belt from 30 - 60 cm  58153  46,80

        Accessories seat belts                              Belt adaptations for VW T5 panel van from
                                                            MY. 3/06
                                                                                    Set 2
                                                                      Set 3                      Set 1









           Seat belt suspension
           For mounting the seat belt centrally above the rear window.standard,
           cranked for VW T4             58050   17,90
           straight, VW T5               58051   17,90
           Belt whip for S-seats VW T4                       - For 3-point belt
           (driver or passenger side) required for retrofitting of swivel consoles  - For retrofitting the belt anchorage points on the VW T5 panel van
           in VW T4. Length: 310 mm      58046   28,25       - Suitable for short and long wheelbase
           Threaded plate 60 x 30 mm, to weld in threads for seat belts at  - Delivery without belts, suitable for 1 side
           points provided by vehicle manufacturer .  58052  6,40  Set 1: at the C-pillar left or right  59145  37,40
           Weld-in nut with fine         58045    2,95       Set 2: above the rear wheel arch left or right  59146  205,--
                                                             Set 3: at the D-bar at the top in connection with the belt 59147  67,70
                                                             3-point belt                      58149  104,50
