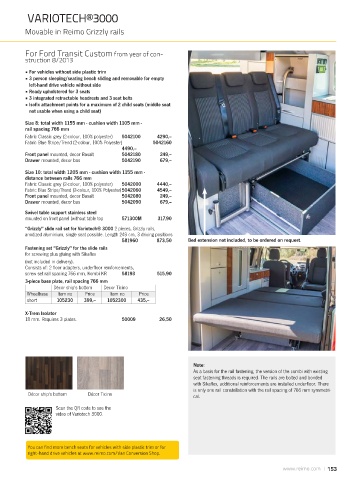

Page 153 - REIMO - VAN CONVERSION catalogue

VARIOTECH®3000

Movable in Reimo Grizzly rails

For Ford Transit Custom from year of con-
struction 8/2013
• For vehicles without side plastic trim
• 3 person sleeping/seating bench sliding and removable for empty
left-hand drive vehicle without side
• Ready upholstered for 3 seats
• 3 integrated retractable headrests and 3 seat belts
• Isofix attachment points for a maximum of 2 child seats (middle seat
not usable when using a child seat)
Size 8: total width 1155 mm - cushion width 1105 mm -
rail spacing 766 mm
Fabric Classic grey (2-colour, 100% polyester) 5042100 4290,--
Fabric Blue Stripe/Trend (2-colour, 100% Polyester) 5042160
4490,--
Front panel mounted, decor Basalt 5042180 249,--
Drawer mounted, decor bas 5042190 679,--

Size 10: total width 1205 mm - cushion width 1155 mm -
distance between rails 766 mm
Fabric Classic grey (2-colour, 100% polyester) 5042000 4440,--
Fabric Blue Stripe/Trend (2-colour, 100% Polyester)5042060 4549,--
Front panel mounted, decor Basalt 5042080 249,--
Drawer mounted, decor bas 5042090 679,--
Swivel table support stainless steel
mounted on front panel (without table top 571300M 317,90
“Grizzly" slide rail set for Variotech® 3000 2 pieces, Grizzly rails,
anodized aluminium, single seat possible. Length 249 cm, 3 driving positions
581960 873,50 Bed extension not included, to be ordered on request.
Fastening set "Grizzly" for the slide rails
for screwing plus gluing with Sikaflex
(not included in delivery).
Consists of: 2 floor adapters, underfloor reinforcements,
screw set rail spacing 766 mm, Kombi KR 58193 515,90
3-piece base plate, rail spacing 766 mm
Décor ship's bottom Decor Ticino
Wheelbase Item no Price Item no Price
short 105230 399,-- 1052300 435,--

X-Trem Isolator
18 mm. Requires 3 plates. 50009 26,50

Note:
As a basis for the rail fastening, the version of the combi with existing
seat fastening threads is required. The rails are bolted and bonded
with Sikaflex, additional reinforcements are installed underfloor. There
is only one rail constellation with the rail spacing of 766 mm symmetri-
Décor ship's bottom Décor Ticino cal.

Scan the QR code to see the
video of Variotech 3000.

You can find more bench seats for vehicles with side plastic trim or for
right-hand drive vehicles at www.reimo.com/Van Conversion Shop.
