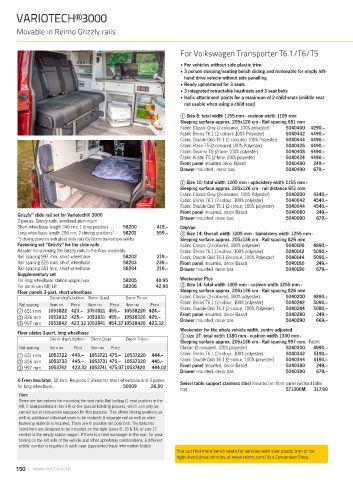

Page 150 - REIMO - VAN CONVERSION catalogue

VARIOTECH®3000

Movable in Reimo Grizzly rails

For Volkswagen Transporter T6.1/T6/T5

• For vehicles without side plastic trim
• 3 person sleeping/seating bench sliding and removable for empty left-
hand drive vehicle without side panelling
• Ready upholstered for 3 seats
• 3 integrated retractable headrests and 3 seat belts
• Isofix attachment points for a maximum of 2 child seats (middle seat
not usable when using a child seat)

Size 8: total width 1155 mm - cushion width 1105 mm
Sleeping surface approx. 205x120 cm - Rail spacing 651 mm
Fabric Classic Grey (2-coloured, 100% polyester) 5040400 4290,--
Fabric Bricks T6.1 (2 colours 100% Polyester) 5040442 4490,--
Fabric Double Grid T6.1 (2 coloured 100% Polyester) 5040444 4490,--
Fabric Place T5 (2-coloured 100% Polyester) 5040426 4490,--
Fabric Tasamo T5 (2-tone 100% polyester) 5040408 4490,--
Fabric Austin T5 (2-tone 100% polyester) 5040424 4490,--
Front panel mounted decor Basalt 5040480 249,--
Drawer mounted , decor bas 5040490 679,--

Size 10: total width 1205 mm - upholstery width 1155 mm -
Sleeping surface approx. 205x126 cm - rail distance 651 mm
Fabric Classic Grey (2-coloured, 100% Polyester) 5040000 4340,--
Fabric Bricks T6.1 (2-colour, 100% polyester) 5040042 4540,--
Fabric Double Grid T6.1 (2-colour, 100% polyester) 5040044 4540,--
Grizzly" slide rail set for Variotech® 3000 Front panel mounted, decor Basalt 5040080 249,--
2 pieces, Grizzly rails, anodized aluminium Drawer mounted, decor bas 5040090 679,--
Short wheelbase length 246 cm, 1 drive position 58200 419,-- CityVan
Long wheelbase length 286 cm, 2 driving positions* 58201 559,-- Size 14: Overall width 1305 mm - Upholstery width 1255 mm -
*3 driving positions with glued slide rails (by Reimo trained specialists) Sleeping surface approx. 205x136 cm - Rail spacing 826 mm
Fastening set "Grizzly" for the slide rails Fabric Classic (2-coloured, 100% polyester) 5040100 4890,--
Adapter for screwing the Grizzly rails to the floor assembly Fabric Bricks T6.1 (2-colour, 100% polyester) 5040142 5090,--
Rail spacing 997 mm, short wheelbase 58202 219,-- Fabric Double Grid T6.1 (2-colour, 100% Polyester) 5040144 5090,--
Rail spacing 826 mm, short wheelbase 58203 239,-- Front panel mounted, decor Basalt 5040180 249,--
Rail spacing 651 mm, short wheelbase 58204 219,-- Drawer mounted, decor bas 5040190 679,--
Supplementary set
For long wheelbase station wagon/van 58205 40,95 Weekender Plus
For panel van KR/LR 58206 42,95 Size 14: total width 1305 mm - cushion width 1255 mm -
Floor panels 3-part, short wheelbase Sleeping surface approx. 205x136 cm - Rail spacing 826 mm
Décor ship's bottom Décor Quad Decor Ticino Fabric Classic (2-coloured, 100% polyester) 5040200 4890,--
Rail spacing Item no Price Item no Price Item no Price Fabric Bricks T6.1 (2-colour, 100% polyester) 5040242 5090,--
651 mm 1053822 423,-- 1053821 455,-- 10538220 424,-- Fabric Double Grid T6.1 (2-colour, 100% Polyester) 5040244 5090,--
826 mm 1053832 425,-- 1053831 455,-- 10538320 425,-- Front panel mounted, decor Basalt 5040280 249,--
5040290
Drawer mounted, decor bas
669,--
997 mm 1053842 423,321053841 454,3710538420 423,32
Weekender for the whole vehicle width, centre adjusted
Floor plates 3-part, long wheelbase size 17: total width 1380 mm - cushion width 1330 mm -
Décor ship's bottom Décor Quad Decor Ticino
Sleeping surface approx. 205x136 cm - Rail spacing 997 mm. Fabric
Rail spacing Item no Price Item no Price Classic (2-coloured, 100% polyester) 5040300 4990,--
651 mm 1053722 445,-- 1053721 475,-- 10537220 444,-- Fabric Bricks T6.1 (2-colour, 100% polyester) 5040342 5190,--
826 mm 1053732 445,-- 1053731 475,-- 10537320 445,-- Fabric Double Grid T6.1 (2-colour, 100% polyester) 5040344 5190,--
997 mm 1053742 423,32 1053741 475,0710537420 444,02 Front panel mounted, decor Basalt 5040380 249,--
Drawer mounted, decor bas 5040390 679,--
X-Trem Insulator, 18 mm. Requires 2 plates for short wheelbase and 3 plates Swivel table support stainless steel mounted on front panel (without table
for long wheelbase. 50009 26,50
top) 571300M 317,90
Hint:
There are two options for mounting the seat rails: Rail bolting (1 seat position in the
KR, 2 seat positions in the LR) or the special bonding process, which can only be
carried out in companies equipped for this purpose. This allows driving positions as
well as additional individual seats to be realized. A separate rail as well as other
fastening material is required. There are 6 possible rail positions. The benches
listed here are designed to be mounted on the right (sizes 8, 10 & 14, or size 17
centre) in the empty station wagon. If there is a heat exchanger in the rear, for posi-
tioning on the left side of the vehicle and other upholstery combinations, a different
article number is required in each case (specialized trade information folder)
You can find more bench seats for vehicles with side plastic trim or for
right-hand drive vehicles at www.reimo.com/Van Conversion Shop.
