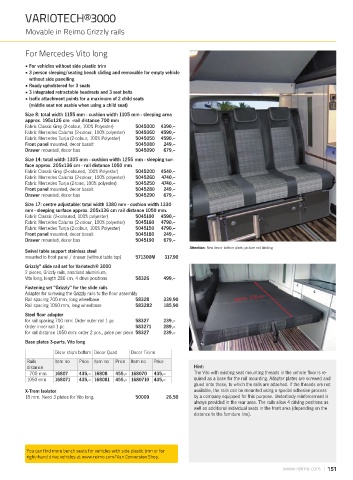

P. 151

VARIOTECH®3000


          Movable in Reimo Grizzly rails


          For Mercedes Vito long

          • For vehicles without side plastic trim
          • 3 person sleeping/seating bench sliding and removable for empty vehicle
           without side panelling
          • Ready upholstered for 3 seats
          • 3 integrated retractable headrests and 3 seat belts
          • Isofix attachment points for a maximum of 2 child seats
           (middle seat not usable when using a child seat)
          Size 8: total width 1155 mm - cushion width 1105 mm - sleeping area
          approx. 195x126 cm -rail distance 700 mm
          Fabric Classic Grey (2-colour, 100% Polyester)  5045000  4390,--
          Fabric Mercedes Caluma (2-colour, 100% polyester)  5045060  4590,--
          Fabric Mercedes Tunja (2-colour, 100% Polyester)  5045050  4590,--
          Front panel mounted, decor basalt    5045080  249,--
          Drawer mounted, decor bas            5045090  679,--
          Size 14: total width 1305 mm - cushion width 1255 mm - sleeping sur-
          face approx. 205x136 cm - rail distance 1050 mm
          Fabric Classic Grey (2-coloured, 100% Polyester)  5045200  4540,--
          Fabric Mercedes Caluma (2-colour, 100% polyester)  5045260  4740,--
          Fabric Mercedes Tunja (2-tone, 100% polyester)  5045250  4740,--
          Front panel mounted, decor basalt    5045280  249,--
          Drawer mounted, decor bas            5045290  679,--
          Size 17: centre adjustable: total width 1380 mm - cushion width 1330
          mm - sleeping surface approx. 205x136 cm rail distance 1050 mm.
          Fabric Classic (2-coloured, 100% polyester)  5045100  4590,--
          Fabric Mercedes Caluma (2-colour, 100% polyester)  5045160  4790,--
          Fabric Mercedes Tunja (2-colour, 100% Polyester)  5045150  4790,--
          Front panel mounted, decor basalt    5045180  249,--
          Drawer mounted, decor bas            5045190  679,--
                                                                 Attention: New decor bottom plate, picture not binding
          Swivel table support stainless steel
          mounted to front panel / drawer (without table top)  571300M  317,90
          Grizzly" slide rail set for Variotech® 3000
          2 pieces, Grizzly rails, anodized aluminium,
          Vito long, length 286 cm, 4 drive positions  58326  499,--
          Fastening set "Grizzly" for the slide rails
          Adapter for screwing the Grizzly rails to the floor assembly
          Rail spacing 700 mm, long wheelbase  58328    339,90                  approx. 200cm
          Rail spacing 1050 mm, long wheelbase  583282  185,90
          Steel floor adapter
          for rail spacing 700 mm: Order outer rail 1 pc  58327  239,--
          Order inner rail 1 pc                583271   289,--
          for rail distance 1050 mm: order 2 pcs., price per piece 58327  239,--
          Base plates 3-parts, Vito long
                    Décor ship's bottom Décor Quad  Decor Ticino
          Rails     Item no  Price  Item no  Price  Item no  Price
          distance                                                Hint:
           700 mm   16807   435,-- 16808  455,-- 168070  435,--   The Vito with existing seat mounting threads in the vehicle floor is re-
          1050 mm   168071  435,-- 168081  455,-- 1680710 435,--  quired as a base for the rail mounting. Adapter plates are screwed and
                                                                  glued onto these, to which the rails are attached. If the threads are not
          X-Trem Isolator                                         available, the rails can be mounted using a special adhesive process
          18 mm. Need 3 plates for Vito long.  50009     26,50    by a company equipped for this purpose. Underbody reinforcement is
                                                                  always provided in the rear area. The rails allow 4 driving positions as
                                                                  well as additional individual seats in the front area (depending on the
                                                                  distance to the furniture line).






          You can find more bench seats for vehicles with side plastic trim or for
          right-hand drive vehicles at www.reimo.com/Van Conversion Shop.
