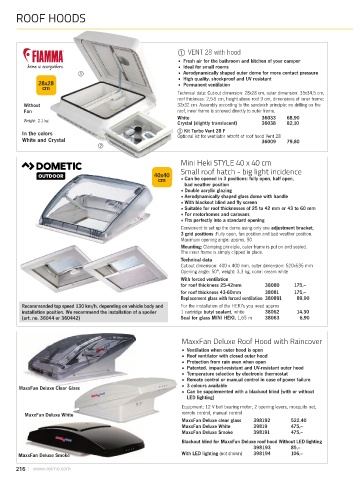

P. 216

ROOF HOODS






                                                                VENT 28 with hood
                                                             • Fresh air for the bathroom and kitchen of your camper
                                                             • Ideal for small rooms
                                                             • Aerodynamically shaped outer dome for more contact pressure
                                                             • High quality, shockproof and UV resistant
              28x28                                          • Permanent ventilation
               cm
                                                             Technical data: Cut-out dimension: 28x28 cm, outer dimension: 35x34,5 cm,
                                                             roof thickness: 2,5-5 cm, height above roof 9 cm, dimensions of inner frame:
         Without                                             32x32 cm. Assembly according to the sandwich principle: no drilling on the
         Fan                                                 roof, inner frame is screwed directly to outer frame.
                                                             White                       36033    68,90
         Weight: 2.1 kg                                      Crystal (slightly translucent)  36038  82,10
                                                               Kit Turbo Vent 28 F
         In the colors                                       Optional kit for ventilator retrofit of roof hood Vent 28
         White and Crystal                                                               36009    79,80


                                                              Mini Heki STYLE 40 x 40 cm
                                                              Small roof hatch - big light incidence
                                                     40x40
                                                      cm      • Can be opened in 3 positions: fully open, half open,
                                                               bad weather position
                                                              • Double acrylic glazing
                                                              • Aerodynamically shaped glass dome with handle
                                                              • With blackout blind and fly screen
                                                              • Suitable for roof thicknesses of 25 to 42 mm or 43 to 60 mm
                                                              • For motorhomes and caravans
                                                              • Fits perfectly into a standard opening
                                                              Convenient to set up the dome using only one adjustment bracket,
                                                              3 grid positions :Fully open, fan position and bad weather position.
                                                              Maximum opening angle: approx. 50
                                                              Mounting: Clamping principle, outer frame is put on and sealed.
                                                              The inner frame is simply clipped in place.
                                                              Technical data
                                                              Cut-out dimension: 400 x 400 mm, outer dimension: 520x535 mm
                                                              Opening angle: 50°, weight: 3,3 kg, color: cream white
                                                              With forced ventilation
                                                              for roof thickness 25-42mm  38080     175,--
                                                              for roof thickness 43-60mm  38081     175,--
                                                              Replacement glass with forced ventilation 380891  89,90
        Recommended top speed 130 km/h, depending on vehicle body and  For the installation of the HEKI's you need approx
        installation position. We recommend the installation of a spoiler  1 cartridge butyl sealant, white  38062  14,30
        (art. no. 36044 or 360442)                            Seal for glass MINI HEKI, 1,65 m  38063  6,90



                                                              MaxxFan Deluxe Roof Hood with Raincover
                                                              • Ventilation when outer hood is open
                                                              • Roof ventilator with closed outer hood
                                                              • Protection from rain even when open
                                                              • Patented, impact-resistant and UV-resistant outer hood
                                                              • Temperature selection by electronic thermostat
                                                              • Remote control or manual control in case of power failure
                                                              • 3 colours available
       MaxxFan Deluxe Clear Glass
                                                              • Can be supplemented with a blackout blind (with or without
                                                                LED lighting)
                                                              Equipment: 12 V ball bearing motor, 2 opening levers, mosquito net,
         MaxxFan Deluxe White                                 remote control, manual control
                                                              MaxxFan Deluxe clear glass  398192   522,40
                                                              MaxxFan Deluxe White    39819        475,--
                                                              MaxxFan Deluxe Smoke    398191       475,--
                                                              Blackout blind for MaxxFan Deluxe roof hood Without LED lighting
                                                                                      398193       85,--
       MaxxFan Deluxe Smoke                                   With LED lighting (not shown)  398194  106,--

      216   www.reimo.com
