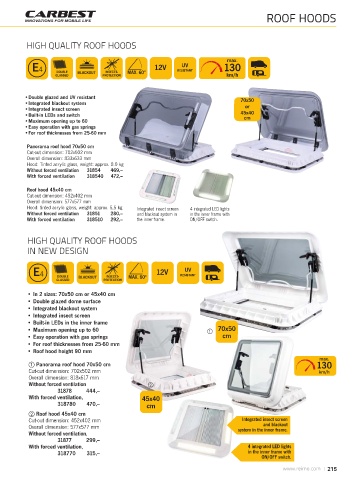

Page 215 - REIMO - VAN CONVERSION catalogue
P. 215

ROOF HOODS




          HIGH QUALITY ROOF HOODS


                                                                              max.
                                                              UV
            E4      DOUBLE           INSECTS-        12V     RESISTANT      130
                    GLASSED  BLACKOUT  PROTECTION  MAX. 60°                  km/h



         •Double glazed and UV resistant                                          70x50
         •Integrated blackout system
         •Integrated insect screen                                                  or
         •Built-in LEDs and switch                                                45x40
                                                                                   cm
         •Maximum opening up to 60
         •Easy operation with gas springs
         •For roof thicknesses from 25-60 mm
          Panorama roof hood 70x50 cm
          Cut-out dimension: 702x502 mm
          Overall dimension: 833x633 mm
          Hood: Tinted acrylic glass, weight: approx. 8.0 kg
          Without forced ventilation  31854  469,--
          With forced ventilation  318540  472,--

          Roof hood 45x40 cm
          Cut-out dimension: 452x402 mm
          Overall dimension: 577x577 mm
          Hood: tinted acrylic glass, weight: approx. 5,5 kg  Integrated insect screen  4 integrated LED lights
          Without forced ventilation  31851  280,--  and blackout system in  in the inner frame with
          With forced ventilation  318510  292,--  the inner frame.  ON/OFF switch.

          HIGH QUALITY ROOF HOODS
          IN NEW DESIGN



                                                               UV
            E4      DOUBLE           INSECTS-         12V     RESISTANT
                    GLASSED  BLACKOUT  PROTECTION  MAX. 60°

          • In 2 sizes: 70x50 cm or 45x40 cm
          • Double glazed dome surface
          • Integrated blackout system
          • Integrated insect screen
          • Built-in LEDs in the inner frame
          • Maximum opening up to 60                                      70x50
          • Easy operation with gas springs                                 cm
          • For roof thicknesses from 25-60 mm
          • Roof hood height 90 mm
                                                                                                             max.
             Panorama roof hood 70x50 cm                                                                    130
           Cut-out dimension: 702x502 mm                                                                     km/h
           Overall dimension: 818x617 mm
           Without forced ventilation
                    31878     444,--
           With forced ventilation,              45x40
                    318780    470,--              cm
             Roof hood 45x40 cm
           Cut-out dimension: 452x402 mm                                           Integrated insect screen
                                                                                          and blackout
           Overall dimension: 577x577 mm                                         system in the inner frame.
           Without forced ventilation,
                    31877     299,--
           With forced ventilation,                                                  4 integrated LED lights
                    318770    315,--                                                 in the inner frame with
                                                                                         ON/OFF switch.
