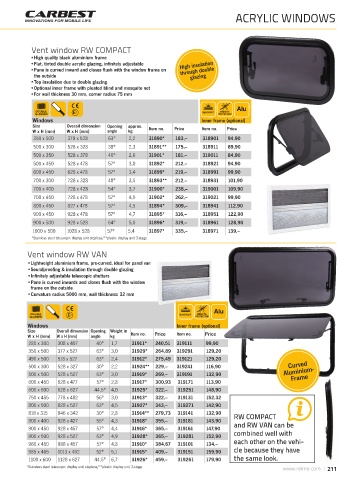

P. 211

ACRYLIC WINDOWS





            Vent window RW COMPACT

           •High quality black aluminium frame
           •Flat, tinted double acrylic glazing, infinitely adjustable  High insulation
           •Pane is curved inward and closes flush with the window frame on  through double
            the outside                                          glazing
           •Top insulation due to double glazing
           •Optional inner frame with pleated blind and mosquito net
           •For wall thickness 30 mm, corner radius 75 mm

                                                                                 Alu
             DOUBLE                                                        INSECTS-
             GLASSED      E 7                                        BLACKOUT  PROTECTION
            Windows                                                  Inner frame (optional)
            Size        Overall dimension  Opening  approx.
            W x H (mm)  W x H (mm)   angle  kg     Item no.  Price   Item no.  Price
            350 x 500   378 x 528    63°    2,2    31890*   183,--   318901   94,90
            500 x 300   528 x 328    38°    2,3    31891**  175,--   318911   89,90
            500 x 350   528 x 378    40°    2,6    31901*   181,--   319011   84,90
            500 x 450   528 x 478    57°    3,0    31892*   212,--   318921   94,90
            600 x 450   628 x 478    57°    3,4    31899*   219,--   318991   99,90
            700 x 300   728 x 328    48°    3,5    31893**  212,--   318931   101,90
            700 x 400   728 x 428    54°    3,7    31900*   238,--   319001   109,90
            700 x 450   728 x 478    57°    4,0    31902*   262,--   319021   99,90
            800 x 450   827 x 478    57°    4,5    31894*   309,--   318941   112,90
            900 x 450   928 x 478    57°    4,7    31895*   316,--   318951   122,90
            900 x 500   928 x 528    64°    5,0    31896*   319,--   318961   128,90
            1000 x 500  1028 x 528   57°    5,4    31897*   335,--   318971   139,--
            *Stainless steel telescopic display unit stepless/**plastic display unit 3-stage
          Vent window RW VAN

          •Lightweight aluminium frame, pre-curved, ideal for panel van
          •Soundproofing & insulation through double glazing
          •Infinitely adjustable telescopic shutters
          •Pane is curved inwards and closes flush with the window
           frame on the outside
          •Curvature radius 5000 mm, wall thickness: 32 mm


                                                                         Alu
           DOUBLE                                             BLACKOUT  INSECTS-
           GLASSED      E 7                                        PROTECTION
          Windows                                            Inner frame (optional)
          Size      Overall dimension Opening Weight in
          W x H (mm)  W x H (mm)  angle  kg  Item no.  Price  Item no.  Price
           280 x 380  308 x 407   40°  1,7   31911*  240,51  319111   99,90
           350 x 500  377 x 527   63°  3,0   31929*  264,89  319291   129,20
           490 x 500  518 x 527   63°  2,4   31912*  275,49  319121   129,20
           500 x 300  528 x 327   30°  2,2   31924**  229,--  319241  116,90                      Curved
           500 x 500  528 x 527   63°  3,0   31919*  269,--  319191   132,90                     Aluminium-
                                                                                                   Frame
           600 x 450  628 x 477   57°  2,8   31917*  300,93  319171   113,90
           600 x 600  628 x 627  44,5°  4,0  31925*  322,--  319251   148,90
           750 x 455  778 x 482   56°  3,0   31913*  322,--  319131   152,32
           800 x 500  828 x 527   63°  4,5   31927*  343,--  319271   142,90
           818 x 315  846 x 342   30°  2,8   31914**  279,73  319141  132,90    RW COMPACT
           900 x 400  928 x 427   55°  4,3   31918*  355,--  319181   143,90    and RW VAN can be
           900 x 450  928 x 457   57°  4,4   31916*  365,--  319161   147,90    combined well with
           900 x 500  928 x 527   63°  4,9   31928*  365,--  319281   152,90
           960 x 450  988 x 457   57°  4,8   31910*  384,67  319101   134,--    each other on the vehi-
           985 x 465  1013 x 492  52°  5,1   31915*  409,--  319151   159,90    cle because they have
           1100 x 600  1128 x 627  44,5°  6,7  31926*  459,--  319261  179,90   the same look.
          *Stainless steel telescopic display unit stepless/**plastic display unit 3-stage      www.reimo.com  211
