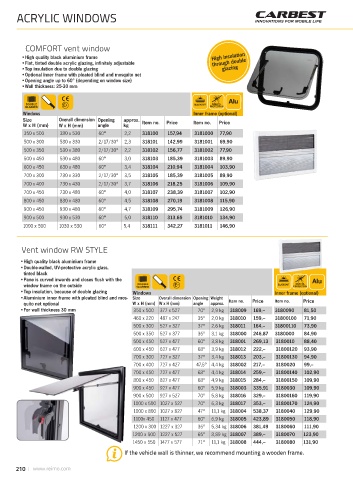

P. 210

ACRYLIC WINDOWS





          COMFORT vent window
        •High quality black aluminium frame                             High insulation
        •Flat, tinted double acrylic glazing, infinitely adjustable      through double
        •Top insulation due to double glazing                               glazing
        •Optional inner frame with pleated blind and mosquito net
        •Opening angle up to 60° (depending on window size)
        •Wall thickness: 25-30 mm
                                                                              Alu
          DOUBLE                                                   BLACKOUT  INSECTS-
          GLASSED     E 4                                               PROTECTION
         Windows                                                  Inner frame (optional)
         Size        Overall dimension Opening  approx.
         W x H (mm)  W x H (mm)   angle    kg    Item no.  Price  Item no.  Price
         350 x 500   380 x 530    60°      2,2   318100  157,94    3181000  77,90
         500 x 300   530 x 330    2/17/30°  2,3  318101  142,99    3181001  69,90
         500 x 350   530 x 380    2/17/30°  2,2  318102  156,77    3181002  77,90
         500 x 450   530 x 480    60°      3,0   318103  185,39    3181003  89,90
         600 x 450   630 x 480    60°      3,4   318104  210,94    3181004  103,90
         700 x 300   730 x 330    2/17/30°  3,5  318105  185,39    3181005  89,90
         700 x 400   730 x 430    2/17/30°  3,7  318106  218,25    3181006  109,90
         700 x 450   730 x 480    60°      4,0   318107  238,39    3181007  102,90
         800 x 450   830 x 480    60°      4,5   318108  270,19    3181008  115,90
         900 x 450   930 x 480    60°      4,7   318109  295,74    3181009  126,90
         900 x 500   930 x 530    60°      5,0   318110  313,65    3181010  134,90
         1000 x 500  1030 x 530   60°      5,4   318111  342,27    3181011  146,90


        Vent window RW STYLE

        •High quality black aluminium frame
        •Double-walled, UV-protective acrylic glass,
         tinted black
        •Pane is curved inwards and closes flush with the                                                 Alu
                                                                                                     INSECTS-
                                               DOUBLE
         window frame on the outside           GLASSED      E 7                                BLACKOUT  PROTECTION
        •Top insulation, because of double glazing  Windows                                   Inner frame (optional)
        •Aluminium inner frame with pleated blind and mos- Size  Overall dimension Opening Weight  Price  Price
         quito net optional                   W x H (mm) W x H (mm)  angle  approx.  Item no.  Item no.
        •For wall thickness 30 mm             350 x 500  377 x 527  70°  2,9 kg  318009  169,--  3180090  81,50
                                              460 x 220  487 x 247  35°  2,0 kg  318010  159,--  31800100  71,90
                                              500 x 300  527 x 327  37°  2,6 kg  318011  164,--  31800110  73,90
                                              500 x 350  527 x 377  36°  3,1 kg  318000  246,87  3180000  84,90
                                              500 x 450  527 x 477  60°  3,8 kg  318001  269,13  3180010  88,40
                                              600 x 450  627 x 477  68°  3,9 kg  318012  222,--  31800120  93,90
                                              700 x 300  727 x 327  37°  3,4 kg  318013  203,--  31800130  94,90
                                              700 x 400  727 x 427  47,5° 4,4 kg  318002  217,--  3180020  99,--
                                              700 x 450  727 x 477  68°  4,4 kg  318014  259,--  31800140  102,90
                                              800 x 450  827 x 477  68°  4,9 kg  318015  284,--  31800150  109,90
                                              900 x 450  927 x 477  60°  5,9 kg  318003  335,91  3180030  109,90
                                              900 x 500  927 x 527  70°  5,8 kg  318016  329,--  31800160  119,90
                                              1000 x 500 1027 x 527  70°  6,3 kg  318017  353,--  31800170  124,90
                                              1000 x 800 1027 x 827  47°  11,1 kg 318004  538,37  3180040  129,90
                                              1100x 450  1127 x 477  60°  6,9 kg  318005  423,89  3180050  118,90
                                              1200 x 300 1227 x 327  36°  5,34 kg 318006  381,49  3180060  111,90
                                              1200 x 500 1227 x 527  65°  8,89 kg 318007  389,--  3180070  123,90
                                              1450 x 550 1477 x 577  71°  11,1 kg 318008  444,--  3180080  131,90
                                           If the vehicle wall is thinner, we recommend mounting a wooden frame.
