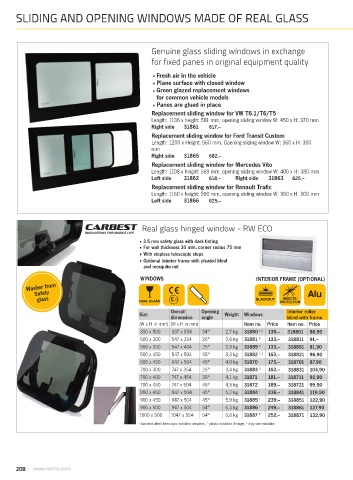

Page 208 - REIMO - VAN CONVERSION catalogue

SLIDING AND OPENING WINDOWS MADE OF REAL GLASS

Genuine glass sliding windows in exchange

for fixed panes in original equipment quality

• Fresh air in the vehicle
• Plane surface with closed window
• Green glazed replacement windows
for common vehicle models
• Panes are glued in place
Replacement sliding window for VW T6.1/T6/T5
Length: 1136 x height: 581 mm, opening sliding window W: 450 x H: 370 mm
Right side 31861 617,--
Replacement sliding window for Ford Transit Custom
Length: 1200 x Height: 560 mm, Opening sliding window W: 360 x H: 300
mm
Right side 31865 682,--
Replacement sliding window for Mercedes Vito
Length: 1108 x height: 569 mm, opening sliding window W: 400 x H: 380 mm
Left side 31862 618,-- Right side 31863 625,--
Replacement sliding window for Renault Trafic
Length: 1160 x height: 590 mm, opening sliding window W: 360 x H: 300 mm
Left side 31866 625,--

, Real glass hinged window - RW ECO

• 3.5 mm safety glass with dark tinting
• For wall thickness 30 mm, corner radius 75 mm
• With stepless telescopic stops
• Optional interior frame with pleated blind
and mosquito net

WINDOWS INTERIOR FRAME (OPTIONAL)
Washer from
Safety Alu
glass REAL GLASS E 13 BLACKOUT PROTECTION
INSECTS-
Overall Opening Interior roller
Size Weight Windows
dimension angle blind with frame
(W x H in mm) (W x H in mm) Item no. Price Item no. Price
350 x 500 397 x 554 54° 2,7 kg 31880 1.3 139,-- 318801 86,90
500 x 300 547 x 354 26° 2,6 kg 31881 2 133,-- 318811 91,--
500 x 350 547 x 404 25° 2,8 kg 31889 3 133,-- 318891 81,90
500 x 450 547 x 504 45° 3,3 kg 31882 1.3 163,-- 318821 96,90
600 x 450 647 x 504 45° 4,0 kg 31870 173,-- 318701 87,90
700 x 300 747 x 354 26° 3,4 kg 31883 2 163,-- 318831 104,90
700 x 400 747 x 454 38° 4,1 kg 31871 181,-- 318711 92,90
700 x 450 747 x 504 45° 4,5 kg 31872 189,-- 318721 95,90
800 x 450 847 x 504 45° 5,2 kg 31884 1 236,-- 318841 119,90
900 x 450 947 x 504 45° 5,9 kg 31885 1 239,-- 318851 122,90
900 x 500 947 x 504 54° 6,3 kg 31886 1 249,-- 318861 127,90
1000 x 500 1047 x 554 54° 6,8 kg 31887 1 252,-- 318871 132,90
3
2
1 stainless steel telescopic exhibitor stepless, plastic exhibitor 3-stage, only one exhibitor

208 www.reimo.com
