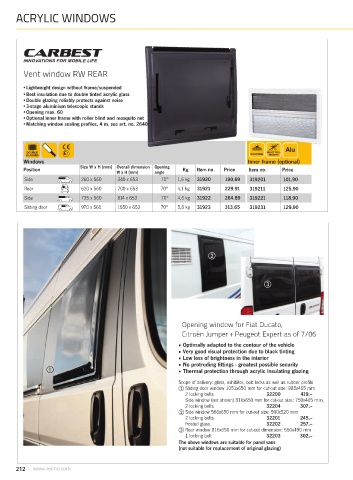

Page 212 - REIMO - VAN CONVERSION catalogue

ACRYLIC WINDOWS

Vent window RW REAR

•Lightweight design without frame/suspended
•Best insulation due to double tinted acrylic glass
•Double glazing reliably protects against noise
•3-stage aluminium telescopic stands
•Opening max. 60
•Optional inner frame with roller blind and mosquito net
•Matching window sealing profiles, 4 m, see art. no. 264004.

Alu
DOUBLE INSECT PRO-
GLASSED E 7 DARKENING TECTION
Windows Inner frame (optional)
Size W x H (mm) Overall dimension Opening
Position Kg Item no. Price Item no. Price
W x H (mm) angle
Side 260 x 560 340 x 653 70° 1,6 kg 31920 190,69 319201 101,90
Rear 620 x 560 700 x 653 70° 4,1 kg 31921 229,91 319211 125,90
Side 735 x 560 814 x 653 70° 4,6 kg 31922 264,89 319221 118,90
Sliding door 970 x 560 1050 x 653 70° 5,8 kg 31923 313,65 319231 129,90

Opening window for Fiat Ducato,
Citroën Jumper + Peugeot Expert as of 7/06

• Optimally adapted to the contour of the vehicle
• Very good visual protection due to black tinting
• Low loss of brightness in the interior
• No protruding fittings - greatest possible security
• Thermal protection through acrylic insulating glazing

Scope of delivery: glass, exhibitor, bolt locks as well as rubber profile
Sliding door window 1051x650 mm for cut-out size: 985x465 mm
2 locking bolts 32200 419,--
Side window (not shown) 816x650 mm for cut-out size: 750x465 mm,
2 locking bolts 32204 307,--
Side window 566x650 mm for cut-out size: 500x520 mm
2 locking bolts 32201 245,--
frosted glass 32202 257,--
Rear window 816x650 mm for cut-out dimension: 550x490 mm
1 locking bolt 32203 302,--
The above windows are suitable for panel vans
(not suitable for replacement of original glazing)
