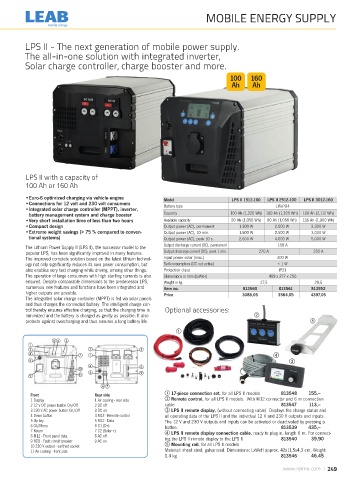

Page 249 - REIMO - VAN CONVERSION catalogue
P. 249
MOBILE ENERGY SUPPLY
LPS II - The next generation of mobile power supply.
The all-in-one solution with integrated inverter,
Solar charge controller, charge booster and more.
100 160
Ah Ah
LPS II with a capacity of
100 Ah or 160 Ah
•Euro-6 optimized charging via vehicle engine Model LPS II 1512-100 LPS II 2512-100 LPS II 3012-160
•Connections for 12 volt and 230 volt consumers Battery type LiFePO4
•Integrated solar charge controller (MPPT), inverter,
battery management system and charge booster Capacity 100 Ah (1,320 Wh) 100 Ah (1,320 Wh) 160 Ah (2,112 Wh)
•Very short installation time of less than two hours Available capacity 80 Ah (1,050 Wh) 80 Ah (1,050 Wh) 136 Ah (1,900 Wh)
•Compact design Output power (AC), permanent 1.300 W 2.000 W 2.300 W
•Extreme weight savings (> 75 % compared to conven- Output power (AC), 10 min. 1.500 W 2.500 W 3.000 W
tional systems) Output power (AC), peak 10 s. 2.600 W 4.000 W 5.000 W
The Lithium Power Supply II (LPS II), the successor model to the Output discharge current (DC), permanent 180 A
popular LPS, has been significantly improved in many features. Output discharge current (DC), peak 1 min. 270 A 350 A
The improved complete solution based on the latest lithium technol- Input power solar (max.) 400 W
ogy not only significantly reduces its own power consumption, but Self-consumption (DC out active) < 1 W
also enables very fast charging while driving, among other things. Protection class IP21
The operation of large consumers with high starting currents is also Dimensions in mm (LxWxH) 409 x 277 x 256
ensured. Despite comparable dimensions to the predecessor LPS, Weight in kg 27,5 29,5
numerous new features and functions have been integrated and Item no. 813560 813561 813552
higher outputs are possible. Price 3088,05 3564,05 4397,05
The integrated solar charge controller (MPPT) is fed via solar panels
and thus charges the connected battery. The intelligent charge con-
trol thereby ensures effective charging, so that the charging time is Optional accessories:
minimized and the battery is charged as gently as possible. It also
protects against overcharging and thus ensures a long battery life.
Front Rear side 17-piece connection set, for all LPS II models 813548 155,--
1 Display 1 Air cooling - rear side Remote control, for all LPS II models. With M12 connector and 6 m connection
2 12 V DC power button On/Off 2 DC off cable 813547 113,--
3 230 V AC power button On/Off 3 DC on LPS II remote display, (without connecting cable) Displays the charge status and
4 Down button 4 M12 - Remote control all operating data of the LPS II and the individual 12 V and 230 V outputs and inputs.
5 Up key 5 M12 - Data The 12 V and 230 V outputs and inputs can be activated or deactivated by pressing a
6 Ok/Menu 6 C1 (D+) button. 813539 435,--
7 Return 7 C2 (Solar +) LPS II remote display connection cable, ready to plug in, length 6 m. For connect-
8 M12 - Front panel data 8 AC off ing the LPS II remote display to the LPS II 813540 39,90
9 RCD - Fault circuit breaker 9 AC on
10 230 V output - earthed socket Mounting rail, for all LPS II models
11 Air cooling - front side Material: sheet steel, galvanized. Dimensions: LxWxH approx. 42x11,5x4,3 cm. Weight:
0,4 kg 813546 46,45
