P. 21

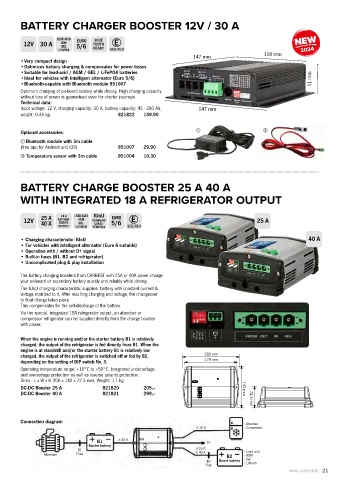

BATTERY CHARGER BOOSTER 12V / 30 A


                     LEAD ACID  EURO  BLUE
         12V 30 A     AGM   5/6   TOOTH
                       GEL
                      LiFePO4     READY  ECE R10
                                                                     147 mm                   118 mm
        • Very compact design
        • Optimizes battery charging & compensates for power losses
        • Suitable for lead-acid / AGM / GEL / LiFePO4 batteries  a
        • Ideal for vehicles with intelligent alternator (Euro 5/6)                                           41 mm
        • Bluetooth-capable with Bluetooth module 851007
        Optimum charging of on-board battery while driving. High charging capacity
        without loss of power is guaranteed even for shorter journeys.
        Technical data:
        Input voltage: 12 V, charging capacity: 30 A, battery capacity: 45 - 280 Ah,   147 mm
        weight: 0.46 kg.                   821822  159,90


        Optional accessories:                                         a                      b
        a Bluetooth module with 3m cable
        (free app for Android and iOS)       851007  29,90
        b Temperature sensor with 3m cable    851004   10,30



        BATTERY CHARGE BOOSTER 25 A 40 A

        WITH INTEGRATED 18 A REFRIGERATOR OUTPUT


                                  IUoU
                      18 A
         12V   25 A  REFRIGE-  LEAD ACID  CHARGING   EURO                                  25 A
                            AGM
                                        5/6
               40 A
                             GEL
                      RATOR-
                                  CARAC-
                      OUTPUT
                            LITHIUM
                                  TERISTICS
                                              ECE R10
        • Charging characteristic: IUoU                                                                      40 A
        • For vehicles with intelligent alternator (Euro 6 suitable)
        • Operation with / without D+ signal
        • Built-in fuses (B1, B2 and refrigerator)
        • Uncomplicated plug & play installation
        The battery charging boosters from CARBEST with 25A or 40A power charge
        your on-board or secondary battery quickly and reliably while driving.
        The IUoU charging characteristic supplies  battery with constant current &
        voltage matched to it. After reaching charging end voltage, the changeover
        to float charge takes place.
        This compensates for the self-discharge of the battery.
        Via the special, integrated 18A refrigerator output, an absorber or
        compressor refrigerator can be supplied directly from the charge booster
        with power.

        When the engine is running and/or the starter battery B1 is relatively
        charged, the output of the refrigerator is fed directly from B1. When the
        engine is at standstill and/or the starter battery B1 is relatively low
        charged, the output of the refrigerator is switched off or fed by B2,   200 mm
        depending on the setting of DIP switch No. 3.                    179 mm
        Operating temperature range: +10°C to +50°C. Integrated undervoltage
        and overvoltage protection as well as reverse polarity protection.
        Dims.: L x W x H 200 x 142 x 72.5 mm, Weight: 1.1 kg         25 25
        DC-DC Booster 25 A           821820        205,--              40 40  40 40   142 mm
        DC-DC Booster 40 A           821821        299,--              30 30  30 30      72,5 mm




        Connection diagram                                                             - Absorber
                                                                      ≤ 18 A           - Compressor

                                   B1      ≤ 45 A                         D+
                                Starter battery
                            B1                                        ≤ 25 A           - Lead acid
                Alternator  Fuse                                      ≤ 40 A     B2    - AGM
                                                                          B2  Board battery  - Gel
                                                                                       - Lithium
                                                                         Fuse
                                                                                                       www.carbest.de 21
