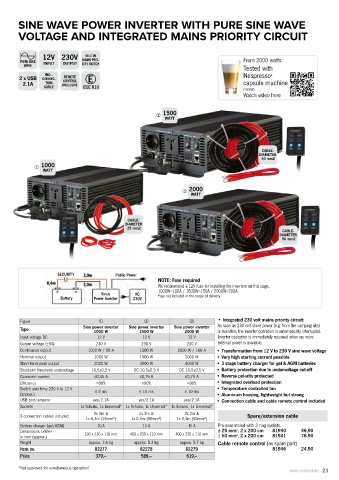

SINE WAVE POWER INVERTER WITH PURE SINE WAVE
       VOLTAGE AND INTEGRATED MAINS PRIORITY CIRCUIT




                12V 230V       BUILT-IN
        PURE SINE             MAINS PRIO-                                              From 2000 watts:
         WAVE   INPUT  OUTPUT  RITY SWITCH
                                                                                      Tested with
                 INCL.                                                                Nespresso ®
        2 x USB  CONNEC-  REMOTE
                       CONTROL
         2.1A    TION  INCLUSIVE                                                      capsule machine
                 CABLE        ECE R10
                                                                                      (2000W)
                                                                                      Watch video here
                                                        b 1500
                                                           WATT





                                                                                             CABLE-
                                                                                            DIAMETER
                                                                                              50 mm2
             a 1000
                WATT


                                                                 c 2000
                                                                    WATT




                                              CABLE-
                                             DIAMETER
                                              25 mm2
                                                                                                    CABLE-
                                                                                                   DIAMETER
                                                                                                     50 mm2





                     SECURITY             Public Power
                                                         NOTE: Fuse required
                                                         We recommend a 12V fuse for installing the inverters on this page.
                                                         1000W=100A / 1500W=150A / 2000W=200A
                                     Sinus      AC
                      Battery     Power Inverter  230V   Fuse not included in the scope of delivery.



        Figure                      a               b               c         • Integrated 230 volt mains priority circuit:
        Type                  Sine power inverter   Sine power inverter   Sine power inverter   As soon as 230 volt shore power (e.g. from the camping site)
                                  1000 W          1500 W          2000 W      is available, the inverter operation is automatically interrupted.
        Input voltage DC           12 V            12 V            12 V       Inverter operation is immediately resumed when no more
        Output voltage (±5%)       230 V           230 V           230 V      external power is available.
        Continuous output       1000 W / 80 A     1500 W       2000 W / 160 A  • Transformation from 12 V to 230 V sine wave voltage
        Nominal output            1000 W          1500 W          2000 W     • Very high starting current possible
        Short term peak output    2000 W          3000 W          4000 W     • 3 stage battery charger for gel & AGM batteries
        Shutdown threshold/undervoltage  10,5±0,5 V  DC 10.5±0.5 V  DC 10.5±0.5 V  • Battery protection due to undervoltage cut-off
        Quiescent current         ≤0,45 A         ≤0,75 A         ≤0,75 A    • Reverse polarity protected
        Efficiency                 >90%            >90%            >90%      • Integrated overload protection
        Switch over time 230 V to 12 V   ≤ 8 ms   ≤ 10 ms         ≤ 10 ms    • Temperature controlled fan
        (approx.)                                                            • Aluminum housing, lightweight but strong
        USB port/ampere           yes/2.1A        yes/2.1A        yes/2.1A   • Connection cable and cable remote control included
        Sockets              1x Schuko, 1x Universal* 1x Schuko, 1x Universal* 1x Schuko, 1x Universal*
                                  2x 2m &         2x 2m &         2x 2m &
        3 connection cables included                                                    Spare/extension cable
                               1x 0,4m (25mm²)  1x 0,4m (50mm²)  1x 0,4m (50mm²)
        Battery charger (gel/AGM)  10 A            15 A            15 A       Pre-assembled with 2 ring eyelets.
        Dimensions LxWxH                                                      ± 25 mm , 2 x 200 cm   81940     46,90
                                                                                    2
        in mm (approx.)        330 x 230 x 110 mm  400 x 230 x 110 mm  400 x 230 x 110 mm  ± 50 mm , 2 x 200 cm   81941     76,90
                                                                                    2
        Weight                  approx. 3.6 kg  approx. 5.3 kg  approx. 5.7 kg  Cable remote control (as spare part)
        Item no.                  82277           82278           82279                          81946     24,90
        Price                      379,--          589,--          619,--
        *Not approved for simultaneous operation!
