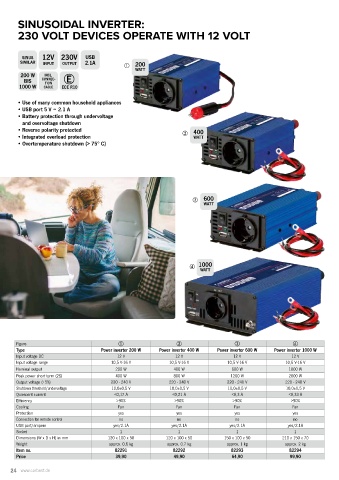

Page 24 - CARBEST 2024 EN
P. 24

SINUSOIDAL INVERTER:
       230 VOLT DEVICES OPERATE WITH 12 VOLT




         SINUS  12V 230V       USB
        SIMILAR  INPUT  OUTPUT  2.1A         a  200
                                                 WATT
        200 W    INCL.
         BIS    CONNEC-
                 TION
        1000 W  CABLE  ECE R10

       • Use of many common household appliances
       • USB port 5 V   2.1 A
                    ~
       • Battery protection through undervoltage
         and overvoltage shutdown
       • Reverse polarity protected                                  400
       • Integrated overload protection                          b   WATT
       • Overtemperature shutdown (> 75° C)










                                                                     c   600
                                                                         WATT











                                                                       1000
                                                                    d
                                                                       WATT














       Figure                              a                   b                   c                    d
       Type                          Power inverter 200 W  Power inverter 400 W  Power inverter 600 W  Power inverter 1000 W
       Input voltage DC                   12 V                 12 V                12 V                12 V
       Input voltage range              10,5 V-16 V         10,5 V-16 V          10,5 V-16 V         10,5 V-16 V
       Nominal output                     200 W               400 W               600 W               1000 W
       Peak power short term (2S)         400 W               800 W               1200 W              2000 W
       Output voltage (±5%)             220 - 240 V         220 - 240 V          220 - 240 V         220 - 240 V
       Shutdown threshold/undervoltage  10,0±0,5 V           10,0±0,5 V          10,0±0,5 V          10,0±0,5 V
       Quiescent current                 <0,17 A              <0,21 A             <0,3 A              <0,33 A
       Efficiency                         >90%                >90%                 >90%                >90%
       Cooling                            Fan                  Fan                 Fan                  Fan
       Protection                          yes                 yes                 yes                  yes
       Connection for remote control       no                  no                   no                  no
       USB port/ampere                   yes/2.1A            yes/2.1A             yes/2.1A            yes/2.1A
       Socket                              1                    1                   1                   1
       Dimensions (W x D x H) in mm    120 x 100 x 50      120 x 100 x 50       150 x 100 x 50      210 x 150 x 70
       Weight                          approx. 0.6 kg       approx. 0.7 kg       approx. 1 kg        approx. 2 kg
       Item no.                          82291                82292               82293                82294
       Price                              39,90               49,90               64,90                99,90

     24  www.carbest.de
