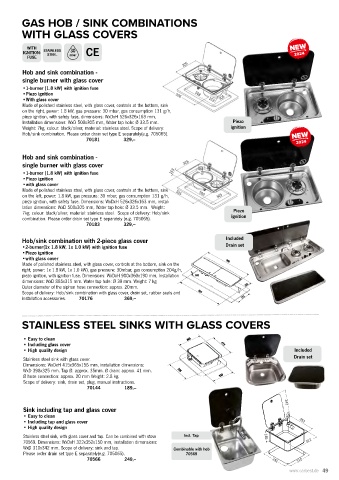

Page 49 - CARBEST 2024 EN

GAS HOB / SINK COMBINATIONS

WITH GLASS COVERS

WITH 30
IGNITION- STAINLESS mbar CE 2024
STEEL
FUSE

326
Hob and sink combination -
single burner with glass cover
•1-burner (1.8 kW) with ignition fuse
•Piezo ignition 526 508
•With glass cover 163 305
Made of polished stainless steel, with glass cover, controls at the bottom, sink
on the right, power: 1.8 kW, gas pressure: 30 mbar, gas consumption 131 g/h,
piezo ignition, with safety fuse, dimensions: WxDxH 526x326x163 mm,
Installation dimensions: WxD 508x305 mm, Water tap hole: Ø 33.5 mm. Piezo
Weight: 7kg, colour: black/silver, material: stainless steel. Scope of delivery: ignition
Hob/sink combination. Please order drain set type E separately(e.g. 705065).
70181 329,--
2024

Hob and sink combination -
single burner with glass cover 326
•1-burner (1.8 kW) with ignition fuse 163
•Piezo ignition
•with glass cover
Made of polished stainless steel, with glass cover, controls at the bottom, sink
526 508
on the left, power: 1.8 kW, gas pressure: 30 mbar, gas consumption 131 g/h, 305
piezo ignition, with safety fuse. Dimensions: WxDxH 526x326x163 mm, instal-
lation dimensions: WxD 508x305 mm, Water tap hole: Ø 33.5 mm. Weight:
7kg, colour: black/silver, material: stainless steel. Scope of delivery: Hob/sink Piezo
combination. Please order drain set type E separately (e.g. 705065). ignition
70183 329,--

Hob/sink combination with 2-piece glass cover Included
•2-burner(1x 1.8 kW, 1x 1.0 kW) with ignition fuse Drain set
•Piezo ignition
•with glass cover
Made of polished stainless steel, with glass cover, controls at the bottom, sink on the
right, power: 1x 1.8 kW, 1x 1.0 kW), gas pressure: 30mbar, gas consumption 204g/h,
piezo ignition, with ignition fuse. Dimensions: WxDxH 900x360x190 mm, Installation
dimensions: WxD 885x315 mm. Water tap hole: Ø 39 mm. Weight: 7 kg
Outer diameter of the siphon hose connection: approx. 20mm.
Scope of delivery: Hob/sink combination with glass cover, drain set, rubber seals and
installation accessories. 70176 369,--

STAINLESS STEEL SINKS WITH GLASS COVERS

• Easy to clean
• Including glass cover
• High quality design Included
Drain set
Stainless steel sink with glass cover.
Dimensions: WxDxH 415x365x156 mm, installation dimensions:
WxD 398x325 mm. Tap Ø: approx. 35mm. Ø drain: approx. 41 mm.
Ø hose connection: approx. 20 mm Weight: 2.8 kg.
Scope of delivery: sink, drain set, plug, manual instructions.
70144 189,--

Sink including tap and glass cover 343
• Easy to clean
• Including tap and glass cover 352
• High quality design
Stainless steel sink, with glass cover and tap. Can be combined with stove Incl. Tap 146
70569. Dimensions: WxDxH 322x352x150 mm, installation dimensions: 322
WxD 310x342 mm. Scope of delivery: sink and tap. Combinable with hob
Please order drain set type E separately(e.g. 705065). 70569
70566 249,-- 342 310
www.carbest.de 49
