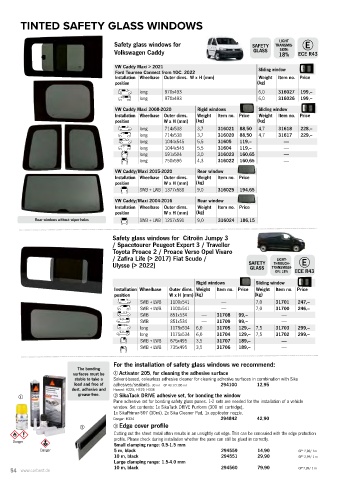

TINTED SAFETY GLASS WINDOWS

LIGHT
Safety glass windows for SAFETY TRANSMIS- E
SION:
Volkswagen Caddy GLASS 18% ECE R43

VW Caddy Maxi > 2021 Sliding window
Ford Tourneo Connect from YOC. 2022
Installation Wheelbase Outer dims. W x H (mm) Weight Item no. Price
position (kg)
long 970x493 6,0 316027 199,--
long 970x493 6,0 316026 199,--
VW Caddy Maxi 2008-2020 Rigid windows Sliding window
Installation Wheelbase Outer dims. Weight Item no. Price Weight Item no. Price
position W x H (mm) (kg) (kg)
long 714x538 3,7 316021 88,50 4,7 31618 228,--
long 714x538 3,7 316020 88,50 4,7 31617 229,--
long 1044x545 5,5 31605 119,-- -----
long 1044x545 5,5 31604 119,-- -----
long 591x504 3,0 316023 160,65 -----
long 750x596 4,3 316022 160,65 -----
VW Caddy/Maxi 2015-2020 Rear window
Installation Wheelbase Outer dims. Weight Item no. Price
position W x H (mm) (kg)
SWB + LWB 1377x588 9,0 316025 194,65
VW Caddy/Maxi 2004-2016 Rear window
Installation Wheelbase Outer dims. Weight Item no. Price
position W x H (mm) (kg)
Rear windows without wiper holes SWB + LWB 1257x591 9,0 316024 186,15

Safety glass windows for Citroën Jumpy 3
/ Spacetourer Peugeot Expert 3 / Traveller
Toyota Proace 2 / Proace Verso Opel Vivaro
/ Zafira Life (> 2017) Fiat Scudo / LIGHT- E
Ulysse (> 2022) SAFETY TRANSMISSI-
THROUGH-
GLASS
ON: 18% ECE R43
Rigid windows Sliding window
Installation Wheelbase Outer dims. Weight Item no. Price Weight Item no. Price
position W x H (mm) (kg) (kg)
SWB + LWB 1100x541 ----- 7,0 31701 247,--
SWB + LWB 1100x541 ----- 7,0 31700 246,--
SWB 851x534 ----- 31708 99,-- -----
SWB 851x534 ----- 31709 99,-- -----
long 1175x534 6,0 31705 129,-- 7,5 31703 299,--
long 1175x534 6,0 31704 129,-- 7,5 31702 299,--
SWB + LWB 675x495 3,5 31707 189,-- -----
SWB + LWB 735x495 3,5 31706 189,-- -----

For the installation of safety glass windows we recommend:
The bonding
surfaces must be a Activator 205, for cleaning the adhesive surface
b stable to take a Solvent-based, colourless adhesive cleaner for cleaning adhesive surfaces in combination with Sika
load and free of adhesives/sealants. 30 ml GP 43.17/100 ml 294100 12,95
dust, adhesive and Hazard: H225, H319, H336
grease-free. b SikaTack DRIVE adhesive set, for bonding the window
a
Pane adhesive set for bonding safety glass panes. 1-2 sets are needed for the installation of a vehicle
window. Set contents: 1x SikaTack DRIVE Purform (300 ml cartridge),
1x SikaPrimer-507 (30ml), 2x Sika Cleaner Pad, 1x applicator nozzle.
Danger: H334 294842 42,90
c Edge cover profile
c
Cutting out the sheet metal often results in an unsightly cut edge. This can be concealed with the edge protection
profile. Please check during installation whether the pane can still be glued in correctly.
Danger
Small clamping range: 0.5-1.5 mm
Danger 5 m, black 294559 14,90 GP* 2,98/ 1m
10 m, black 294551 29,90 GP* 2,99/ 1 m
Large clamping range: 1.5-4.0 mm
10 m, black 294560 79,90 GP*7,99/ 1 m
