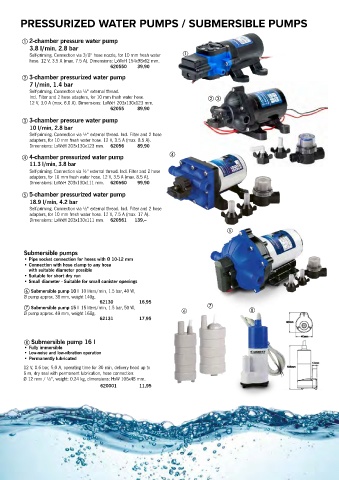

Page 51 - CARBEST 2024 EN

PRESSURIZED WATER PUMPS / SUBMERSIBLE PUMPS

a 2-chamber pressure water pump
3.8 l/min, 2.8 bar
Self-priming. Connection via 3/8" hose nozzle, for 10 mm fresh water a
hose. 12 V, 3.5 A (max. 7.5 A). Dimensions: LxWxH 154x98x62 mm.
620550 39,90
b 3-chamber pressurized water pump
7 l/min, 1.4 bar
Self-priming. Connection via ½" external thread.
Incl. Filter and 2 hose adapters, for 10 mm fresh water hose. b c
12 V, 3.0 A (max. 6.0 A). Dimensions: LxWxH 203x130x123 mm.
62055 89,90

c 3-chamber pressure water pump
10 l/min, 2.8 bar
Self-priming. Connection via ½" external thread. Incl. Filter and 2 hose
adapters, for 10 mm fresh water hose. 12 V, 3.5 A (max. 8.5 A).
Dimensions: LxWxH 203x130x123 mm. 62056 89,90

d 4-chamber pressurized water pump d
11.3 l/min, 3.8 bar
Self-priming. Connection via ½" external thread. Incl. Filter and 2 hose
adapters, for 10 mm fresh water hose. 12 V, 3.5 A (max. 8.5 A).
Dimensions: LxWxH 203x130x111 mm. 620560 99,90

e 5-chamber pressurized water pump
18.9 l/min, 4.2 bar
Self-priming. Connection via ½" external thread. Incl. Filter and 2 hose
adapters, for 10 mm fresh water hose. 12 V, 7.5 A (max. 17 A).
Dimensions: LxWxH 203x130x111 mm. 620561 139,--
e

Submersible pumps
• Pipe socket connection for hoses with Ø 10-12 mm
• Connection with hose clamp to any hose
with suitable diameter possible
• Suitable for short dry run
• Small diameter - Suitable for small canister openings
f Submersible pump 10 l 10 liters/min, 1.5 bar, 40 W,
Ø pump approx. 38 mm, weight 140g.
62130 16,95
g Submersible pump 15 l 15 liters/min, 1.5 bar, 50 W, g h
Ø pump approx. 49 mm, weight 168g. f
62131 17,95

h Submersible pump 16 l
• Fully immersible
• Low-noise and low-vibration operation
• Permanently lubricated
12 V, 0.6 bar, 5.0 A, operating time for 30 min, delivery head up to
6 m, dry seal with permanent lubrication, hose connection:
Ø 12 mm / ½", weight: 0.24 kg, dimensions: HxW 106x48 mm.
620001 11,95

www.carbest.de 51
