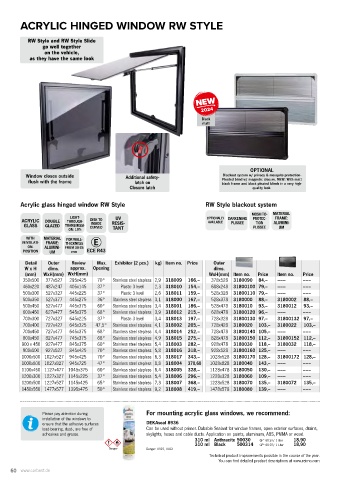

Page 60 - CARBEST 2024 EN
P. 60
ACRYLIC HINGED WINDOW RW STYLE
RW Style and RW Style Slide
go well together
on the vehicle,
as they have the same look
2024
Black
matt
OPTIONAL
Window closes outside Additional safety- Blackout system w/ privacy & mosquito protection-
flush with the frame latch on Pleated blind w/ magnetic closure. NEW: With matt
black frame and black pleated blinds in a very high-
Closure latch quality look.
Acrylic glass hinged window RW Style RW Style blackout system
MOSKITO- MATERIAL
LIGHT- UV OPTIONALLY DARKENING PROTEC- FRAME:
ACRYLIC DOUBLE THROUGH- DISK TO RESIS- AVAILABLE PLISSEE TION ALUMINI-
INSIDE
GLASS GLAZED TRANSMISSI- CURVED PLISSEE UM
ON: 10% TANT
WITH MATERIAL FOR WALL-
VENTILATI- FRAME: THICKNESS E
ON- ALUMINI- FROM 30-35
POSITION UM mm ECE R43
Detail Outer Review Max. Exhibitor (2 pcs.) kg) Item no. Price Outer
W x H dims. approx. Opening dims.
(mm) WxH(mm) WxH(mm) WxH(mm) Item no. Price Item no. Price
350x500 377x527 295x425 70° Stainless steel stepless 2,9 318009 166,-- 378x528 3180090 84,-- ––– –––
460x220 487x247 405x145 37° Plastic 3 level 2,3 318010 154,-- 688x248 31800100 79,-- ––– –––
500x300 527x327 445x225 37° Plastic 3 level 2,6 318011 159,-- 528x328 31800110 79,-- ––– –––
500x350 527x377 445x275 36° Stainless steel stepless 3,1 318000 167,-- 528x378 3180000 88,-- 3180002 88,--
500x450 527x477 445x375 60° Stainless steel stepless 3,4 318001 186,-- 528x478 3180010 93,-- 3180012 93,--
600x450 627x477 545x375 68° Stainless steel stepless 3,9 318012 215,-- 628x478 31800120 96,-- ––– –––
700x300 727x327 645x225 37° Plastic 3 level 3,4 318013 197,-- 728x328 31800130 97,-- 31800132 97,--
700x400 727x427 645x325 47,5° Stainless steel stepless 4,1 318002 205,-- 728x428 3180020 103,-- 3180022 103,--
700x450 727x477 645x375 68° Stainless steel stepless 4,4 318014 252,-- 728x478 31800140 105,-- ––– –––
800x450 827x477 745x375 68° Stainless steel stepless 4,9 318015 275,-- 828x478 31800150 112,-- 31800152 112,--
900 x 450 927x477 845x375 60° Stainless steel stepless 5,4 318003 282,-- 928x478 3180030 118,-- 3180032 118,--
900x500 927x527 845x425 70° Stainless steel stepless 5,8 318016 318,-- 928x528 31800160 125,-- ––– –––
1000x500 1027x527 945x425 70° Stainless steel stepless 6,3 318017 343,-- 1028x528 31800170 128,-- 31800172 128,--
1000x800 1027x827 945x725 47° Stainless steel stepless 8,8 318004 370,60 1028x828 3180040 143,-- ––– –––
1100x450 1127x477 1045x375 60° Stainless steel stepless 6,4 318005 328,-- 1128x478 3180050 130,-- ––– –––
1200x300 1227x327 1145x225 37° Stainless steel stepless 5,4 318006 296,-- 1228x328 3180060 109,-- ––– –––
1200x500 1227x527 1145x425 65° Stainless steel stepless 7,3 318007 368,-- 1228x528 3180070 135,-- 3180072 135,--
1450x550 1477x577 1395x475 50° Stainless steel stepless 9,2 318008 419,-- 1478x578 3180080 139,-- ––– –––
Please pay attention during For mounting acrylic glass windows, we recommend:
installation of the windows to
ensure that the adhesive surfaces DEKAseal 8936
load-bearing, dust-, are free of Can be used without primer. Dabable Sealant for window frames, open exterior surfaces, drains,
adhesives and grease. skylights, hoses and cable ducts. Application on paints, aluminum, ABS, PMMA or wood.
310 ml Anthracite 50030 GP* 60.97/ 1 liter 18,90
310 ml Black 500314 GP* 60.97/ 1 Liter 18,90
Danger Danger: H315, H412
Technical product improvements possible in the course of the year.
You can find detailed product descriptions at www.reimo.com
60 www.carbest.de
